The engine is now together and just needs tuning , after the heads were checked an the tappets adjusted.
The shroud was derusted ,then painted with POR15 gloss black .
300SEL 6.3 progress…
Leave a reply
Category Archives: Wet Blasting in Brisbane Queensland
Mercedes Benz 300 SEL 6.3 cylinder Head swap.
A new fuel line has been fitted using the original brackets etc which were in good condition after 40 years…!
W
The engine bay needed a clean and after a wash it was revealed to have a few places where the paint had disappeared because of engine heat .
With the heads off ,a few little things became apparent such as this feed wire for one of the thermal time Switches. A couple of the firewall grommets needed replacing .Missing grommets allow noise,fumes etc into the cabin .
The Steering box was leaking through that round part on the top part of the
Steering box . A new seal had to made for this and the two copper washers were missing. the cover nut and lock nut were both loose. The oil return pipe on the steering box has also been damaged in the past when some one bent it.
With the heads off and the engine due for a repaint ,the booster was removed and rust removed . it was then etch primed and primed. The other objects in the picture belong to the 280SE 3.5 ute project..
The car was completely masked up and the engine bay resprayed in the black satin as before.
BUT before the black could be applied and the engine bay was still in primer one or two other jobs need doing.
The firewall brace on the left hand side was cracked almost right around and had to be welded up.
With the engine bay now painted the heads were fitted ,along with newly plated relay brackets . There is a lot less wiring now the original loom has been cleaned up and things such as a mobile phone loom removed .
New roof on the workshop!!
Big Surprise today,Saturday 9/05/15. The roofers finally turned up to repair the damn roof. Because the old one was asbestos sheet,the whole shop had to sealed up while they removed every on top of the building. Amzingly it took only 8 hours to strip the old roof off and fit insulation ,then fit the new Zincalume roof.
Brilliant light now!.
280SE 3.5 Ute Dash board restoration
In the last week,progress has been made with the dash as the wooden trim is refitted. Next task will be to reit the steering column and complete the wiring restoration and repair followed by the instruments ,steering lock etc.
6.3 major service
Up on the hoist, the steering box coupler has been replaced ,Other jobs required are a new flex disc ,drive shaft universal joints and center support bearings. The diff support pivot bush was worn out so the diff was removed.
The brake hold down (or anti dive mechanism ) device was stripped and overhauled with new seals and bushes. The shafts were a bit stained from water getting in but otherwise OK.
\
The torque arm bushes will be replaced as these look to be the original do nuts and are as hard as rocks.
a bit hard to see in this shot,but this is a heat sheild uder the drivers foot well,which will be removed and cleaned so it does it’s job properly.
Mercedes 280SE 3.5 ute, brakes and air con overhaul
The booster was a bit rusty looking so i t has been decided to strip it down. and clean it up .After pulling the master cylinder off,it could be seen that the booster was full of fluid…..
as can be seen ,the booster contained close to 3 liters of brake fluid.
t
The steering column was then pulled and examined,more BiCarb! ,and the paint had been attacked and needed redoing .
This picture shows the extent of the biCarb inside the gearshift mechanism.
Under the booster,the firewall and the right front chassis rail join was rusted out . The rusted metal is removed and replaced with fresh metal.
Nest Job was to rebuild the Air con and once the housing was opened up,it could be seen that the evaporator was full of fluff and BiCarb.
The bottom of the evaporator housing was rusted out so a new peice of Zinc anneal was welded into place to repair the bottom .Condensation won’t leak into the car now,.
the evaporator has been flushed and the fins cleaned and straigfhtened .Once the new bottom was welded in ,the housing and panels were zinc primered,then primed and fisnh coated in black .The foam liner was replaced and the unit reassembled and the fans tested .
Weber DCOE rebuild
I’ve been restoring a 190SL for an owner and part of the task involves rebuilding it’s non standard DCOE carbs. A lot of W121’s were fitted with these over years to get around the problems thrown up by the awful Solex side draft carbs originally fitted.
Carb on the left has been rebuilt
Carb on the right is in as is condition with blocked jets and water damge
As can be seen in the left photo the chokes have signs of water from the fuel supply.Carb on the right after stripping ,wet blasting and rebuilding.
Below is how the original fuel pipe looked before restoration .
Below the original pipe after replating the pipe and ferules with the ends resoldered back in place.
Temporary mock up of the rear carb in place.
Solex carb finished
All rerassembled and ready to be fitted back on the car in a few weeks ,for tuning.
photo gallery for Ponton Restoration
Lots of photos of a 1956 mercedes 220a ponton restoration in Progress..
1956 220a Mercedes engine restoration

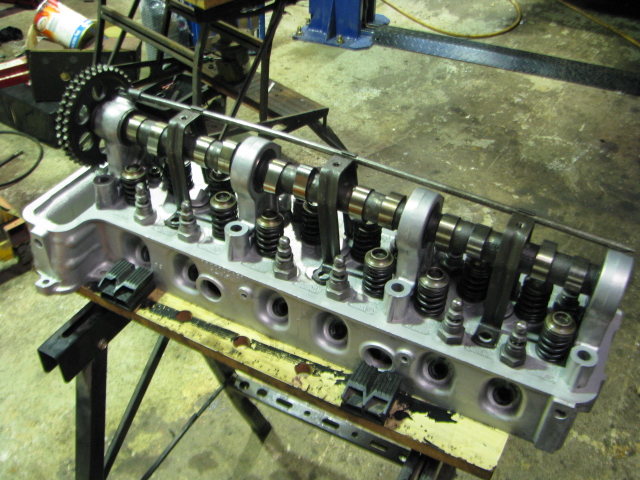

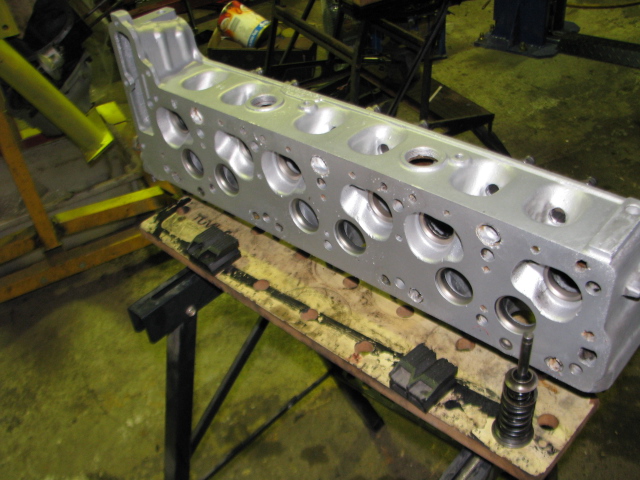

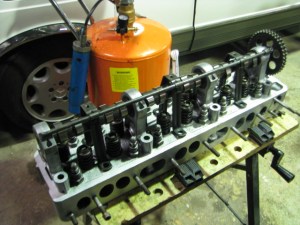

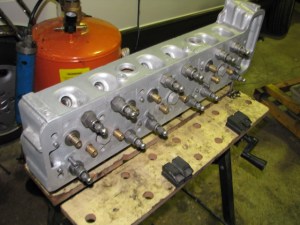

The Cylinder Head has been stripped,wetblasted ,checked for porosity and hardness tested . New valve guides are fitted with new valve guide seals. The heater and thermometer fittings have to installed but that can wait until I have it fitted up to the engine block.
