280SE Ute project

Awaiting pick up .

img_0094

img_0093

img_0095

After many months of reassembly and repair work the 280SE  4.5 ute was finally able to driven and delivered back to her owner for minor finish work





Mercedes Benz 280SE 3.5 ute

IMG_0021 (1)

25/06/16 Well…. here is a problem that no one foresaw , the drivers side chassis rail is rusted clear through ….and wait ,there is more.:-(

IMG_0022

Front ends of Sill boxes are rusted out

IMG_0023

Passenger side rusted out , all will have to repaired .

IMG_0024 (1)

Front cross member behind bumper has been replaced at sometime in the past but never welded to secure it in place ….Not a good idea as it is just floating there.

IMG_0026 (1)

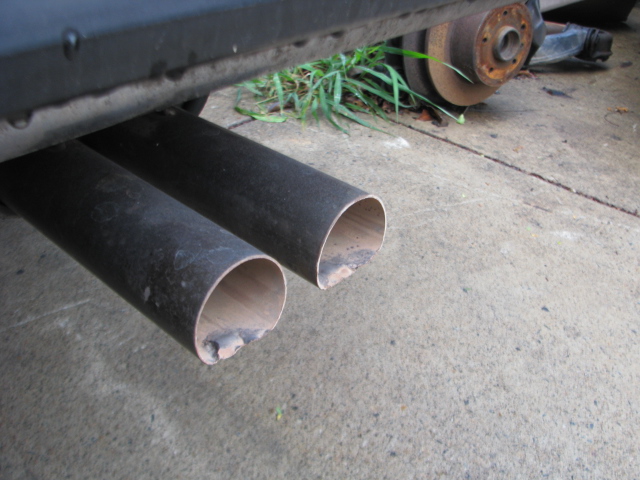

New exhausts installed to replace the rusted out originals which had lasted since 1972!.

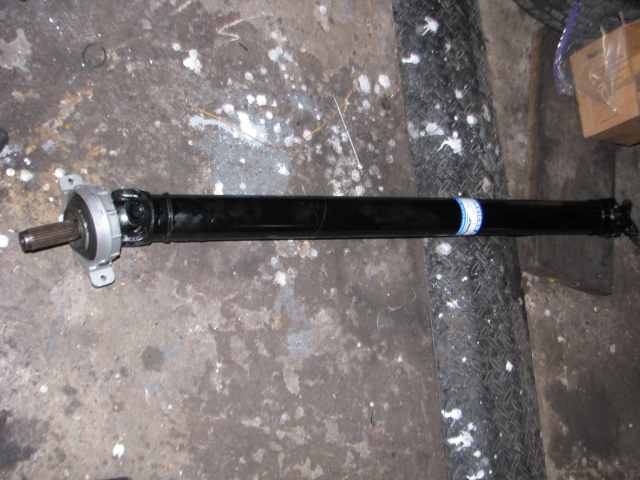

Drive shaft has new flex disc and trans has new shift rod bushes.





Mercedes 300SEL 6.3 garden find.

6.3 #2206 has been removed from  my neighbours front yard to go off to her new owner to get the restoration she deserves.

Mercedes Benz 300SEL 6.3 restoration Project

IMG_0058 IMG_0059 IMG_0060

This is RHD 6,3 #2206 . The engine is incomplete and the drivers side sill/rocker  is rotten but the rest of the car is surprisingly sound but in need of a full restoration .RHD 6.3’s are too rare to part out and i would rather restore this car anyway….. or build a historic racer for weekend fun.

IMG_0041

A great score!

For my own 6.3 I needed a new radiator and had thought of eitherr making a newer one out of alloy but then i found this on ebay..

A brand new old stock 6.3 radiator for .  Not $5000 AUD , Not $2500 USD as demanded for a new one but …………. $275.  Still in it’s original box.

IMG_0009 IMG_0010 IMG_0011

300 SEL 6.3 up and running

A short video showing the 6.3 up and running to check it’as C/O level at hot idle .

Mercedes Benz 300 SEL 6.3 cylinder Head swap.

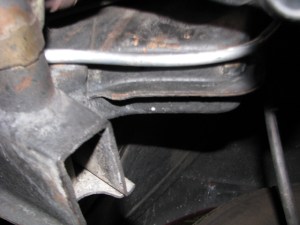

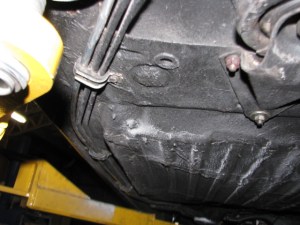

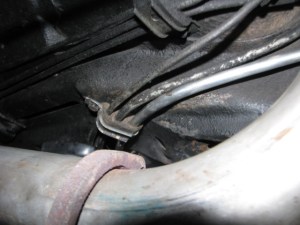

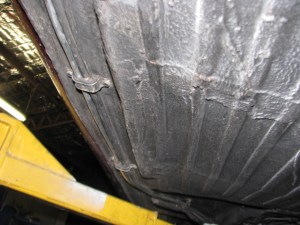

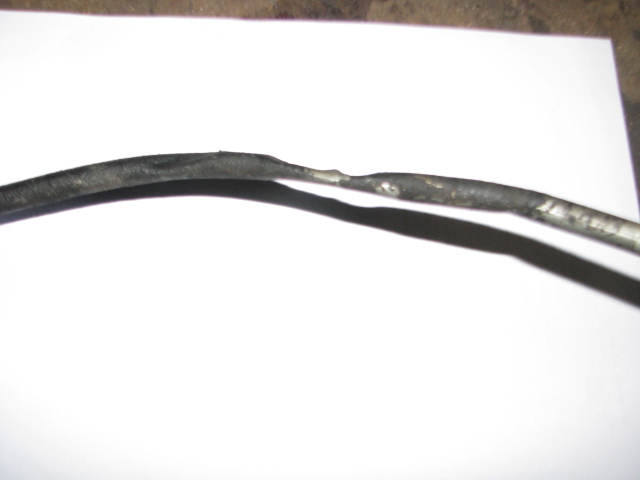

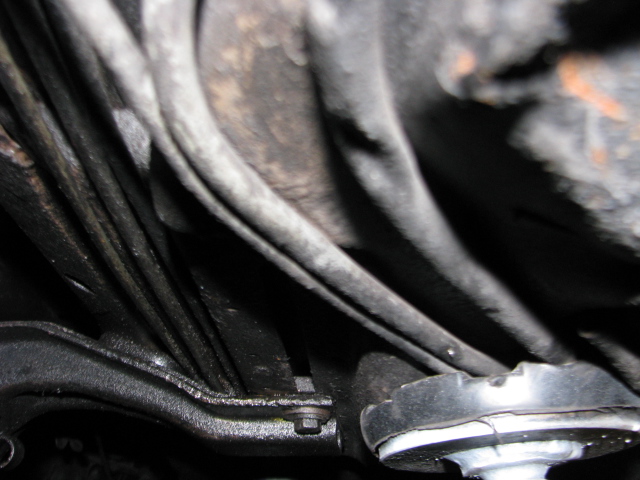

IMG_0253A new fuel line has been fitted using the original brackets etc which were in good condition after 40 years…!

IMG_0254 WIMG_0255 IMG_0256

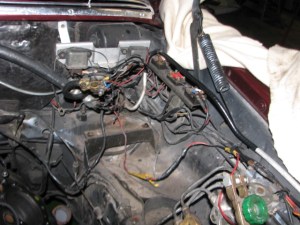

The engine bay needed a clean and after a wash it was revealed to have a few places where the paint had disappeared  because of engine heat . IMG_0261

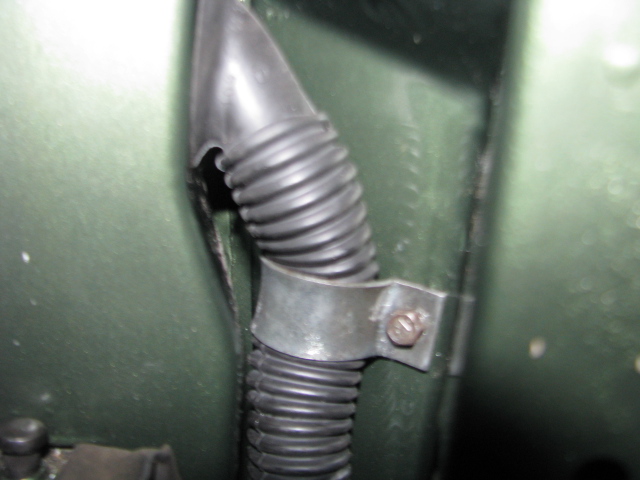

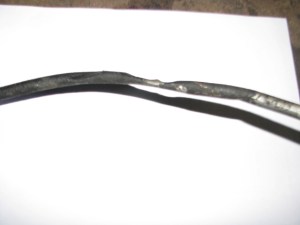

With the heads off ,a few little things became apparent such as this feed wire for one of the thermal time Switches. A couple of the firewall grommets needed replacing .Missing grommets allow noise,fumes etc into the cabin .

IMG_0263

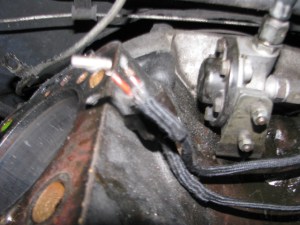

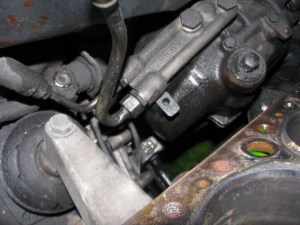

The Steering box was leaking through that round part on the top part of the

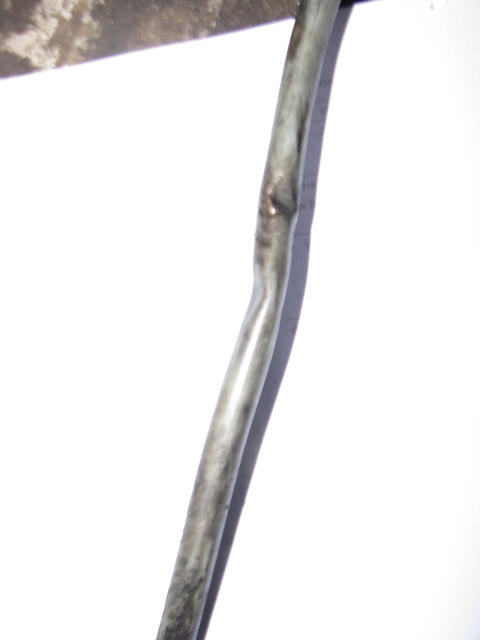

Steering box . A new seal had to made for this and the two copper washers were missing. the cover nut and lock nut were both loose. The oil return pipe on the steering box has also been damaged in the past when some one bent it.

IMG_0264

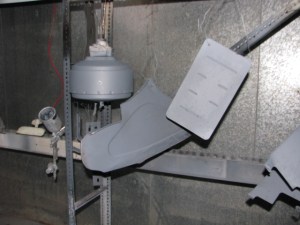

IMG_0271With the heads off and the engine due for a repaint ,the booster was removed and rust removed . it was then etch primed and primed. The other objects in the picture belong to the 280SE 3.5 ute project..

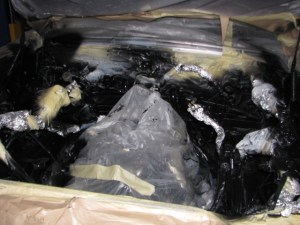

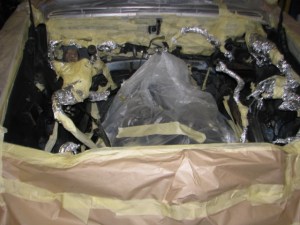

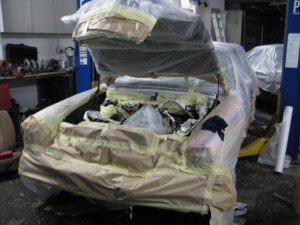

The car was completely masked up and the engine bay resprayed in the black satin as before.

BUT before the black could be applied and the engine bay was still in primer one or two other jobs need doing.

IMG_0275 IMG_0276

IMG_0278IMG_0280

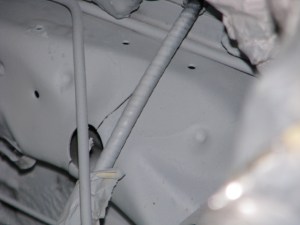

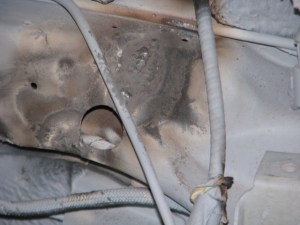

The firewall brace on the left hand side was cracked almost right around and had to be welded up.

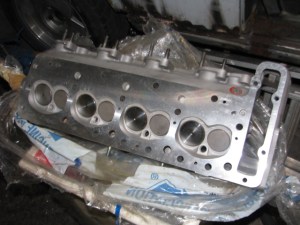

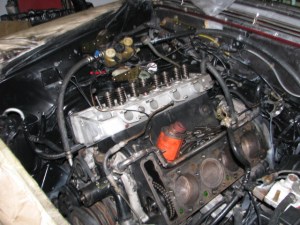

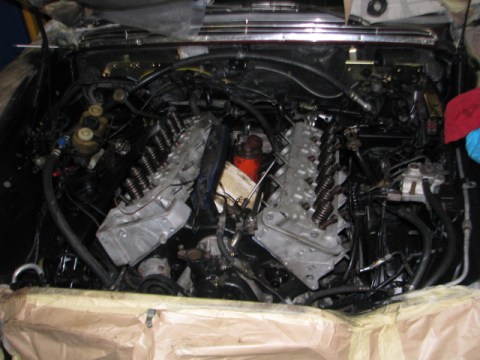

With the engine bay now painted the heads were fitted ,along with newly plated relay brackets . There is a lot less wiring now the original loom has been cleaned up and things such as a mobile phone loom removed .

IMG_0281 IMG_0282 IMG_0286 IMG_0287
