220SE Restoration pt 4

IMG_0111 (2)

Right Front inner sill section .

This picture shows the inner sill section where it has been patched badly in the past . This will be removed and a proper panel fitted to replace it Object sticking down in the center of the picture is the jack point…!

IMG_0119 (1)

Front Guards have been removed

The guards have to be removed to replace the sills and right front one which is full of body filler.

IMG_0120 (1)

Sill Removed on Right Side .

REmoving this part required a lot of work as the sill was 4 layers thick in places including parts of the original sill . This has created pockets of rust which has to be removed. This is the right Front corner The front end is pointing upwards where it was fitted incorrectly. This has to be removed and replaced with a correct part.

IMG_0123 (1)

Top Part of Sill to be removed yet.

The Doors have to be removed next so the sills can trimmed off.

IMG_0125 (1)

Close up right front jack point

This the jack point which has also been badly patched. This is the bottom of the A pillar and has a patch on it ,again it has to be removed and repaired correctly .It’s not connected to the body at the rear ,which is a major safety issue as it can collapse if the car is lifted on the jack point.

IMG_0122 (1)

The Doors are going to be replaced…

Because they have large amounts of filler which would have to be removed,then replaced as the car is going to be repainted and there is the real risk that the rust underneath the filler will get worse.

IMG_0113 (2)

Left Front inner sill section.

Again another part which was patched badly in the past and again this will be removed and repaired correctly.



300SE Lang Rust repair continued

Paint stripping.

We are now at the stage where the old paint has to be removed and new paint applied since all of the rust has been repaired . The sheet metal is in very good condition under the paint which is nearly all original and never been repainted .



Mercedes C107 Restoration and repair progress.

IMG_0109

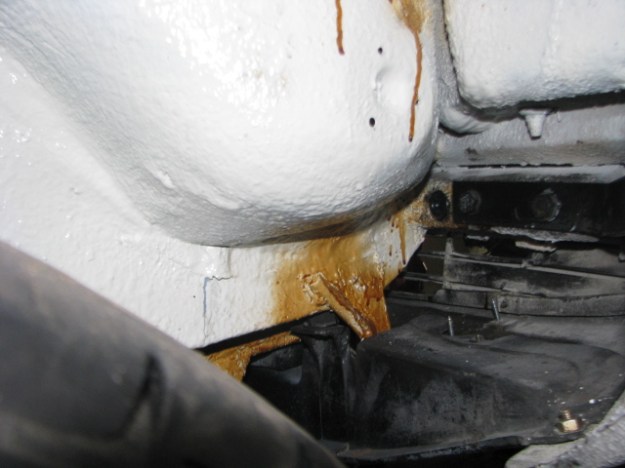

Right Front wheel house and tow hook fabricated and welded into place . now the proper shape with strength restored  to the chassis



IMG_0110

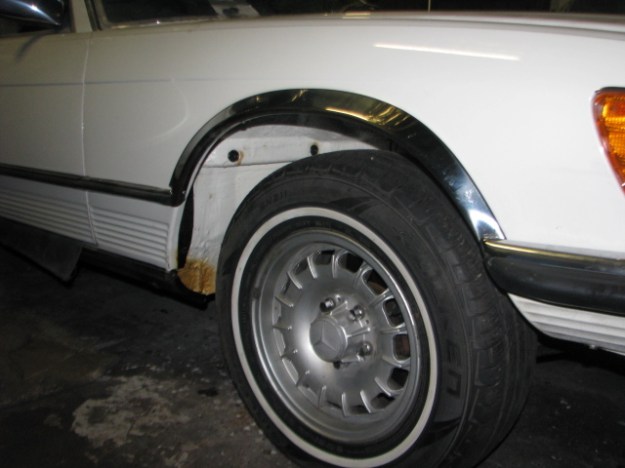

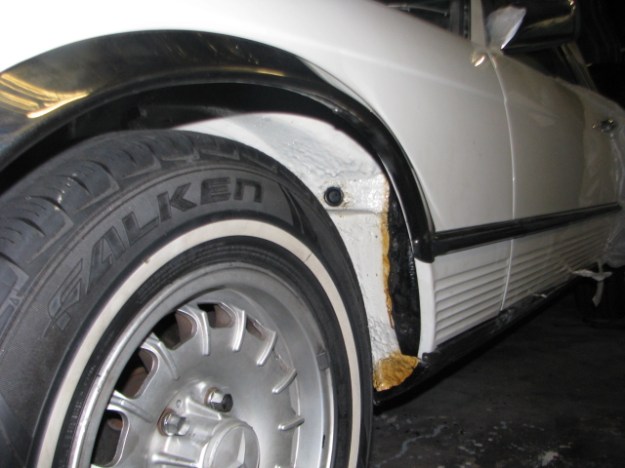

Rear of wheel houses are now the correct shape and finish .

IMG_0112

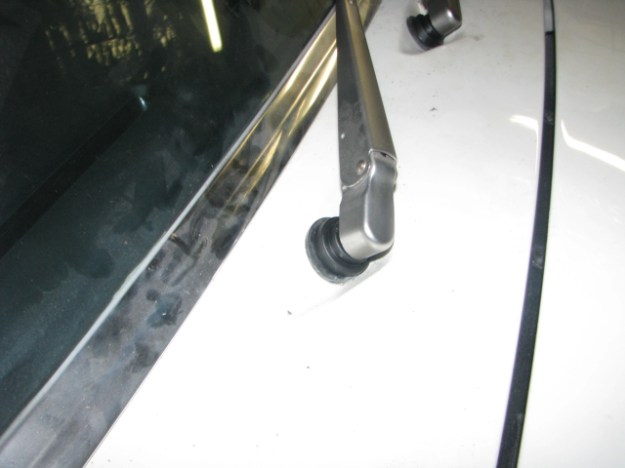

Wiper shaft washers have been replaced with new nut caps to prevent water running down them .



IMG_0111IMG_0114

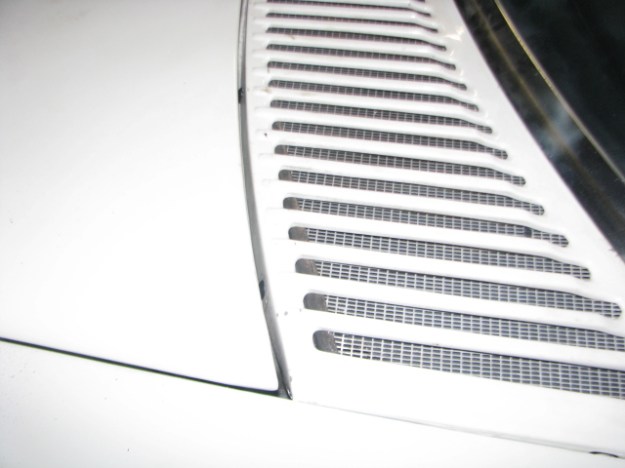

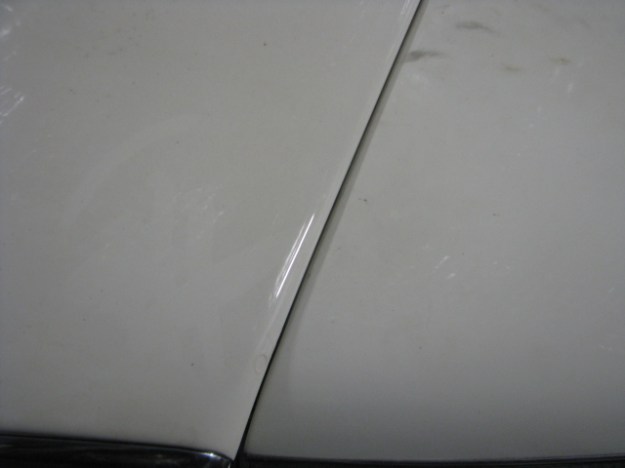

Bonnet Has been adjusted so gaps are now correct .

BIMG_0115
