Mercedes Benz 280SE 3.5 ute

IMG_0021 (1)

25/06/16 Well…. here is a problem that no one foresaw , the drivers side chassis rail is rusted clear through ….and wait ,there is more.:-(


Front ends of Sill boxes are rusted out


Passenger side rusted out , all will have to repaired .

IMG_0024 (1)

Front cross member behind bumper has been replaced at sometime in the past but never welded to secure it in place ….Not a good idea as it is just floating there.

IMG_0026 (1)

New exhausts installed to replace the rusted out originals which had lasted since 1972!.

Drive shaft has new flex disc and trans has new shift rod bushes.



Mercedes Benz 280SE 3.5 ute Engine swap.

The new engine and trans are installed with a new oil pan ,rear and front crank seals. New injectors with new intake manifold gaskets,timing chain and rails should see a nice reliable tow car for the owner 🙂 .New fuel hoses and clamps will connect the fuel system together .

Weber DCOE rebuild

I’ve been restoring a 190SL for an owner and part of the task involves rebuilding it’s non standard DCOE carbs. A lot of W121’s were fitted with these over years to get around the problems thrown up by the awful Solex side draft carbs originally fitted.

Work shop 7 005Carb on the left has been rebuilt

Work shop 7 006Carb on the right is in as is condition with blocked jets and water damge

Work shop 7 007Work shop 7 008

As can be seen in the left photo the chokes have signs of water from the fuel supply.Carb on the right after stripping ,wet blasting and rebuilding.

Below is how the original fuel pipe looked before restoration .

Work shop 7 009 Work shop 7 010

Below the original pipe after replating the pipe and ferules with the ends resoldered back in place.

Work shop 7 011 Work shop 7 013 Work shop 7 015

Temporary mock up of the rear carb in place.

450EBAY 035

Vicker power steering pump VT 27 restoration

On one of the latest jobs, a very sweet W111 220SE cabriolet i had to sort out a leak in the power steering. Specs call for a maximum of 1 mm free play in the shaft ,but this was had close to 10 mm and a slight leak . After contacting the local vickers dealers and getting no where fast I bought the complete kit to overhaul the pump from Mercedes Classic Center. Special tools are required to reassemble the pump ,mainly to fit the bush into the housing after the shaft and the two shell half’s are fitted, then a further tool to fit the outer seal.

Work shop 7 002

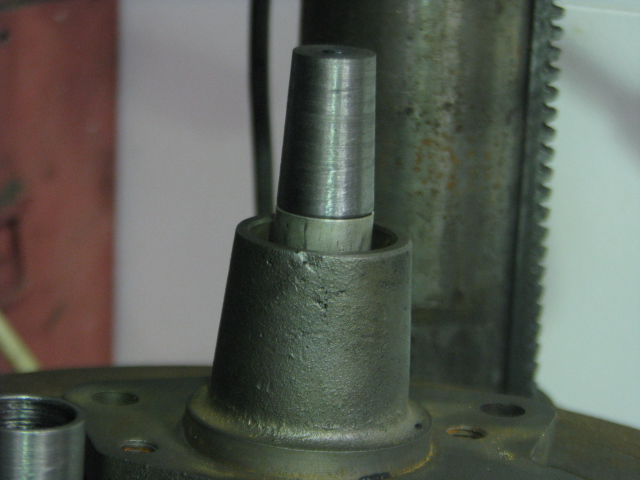

The above pic shows the bush installer in place

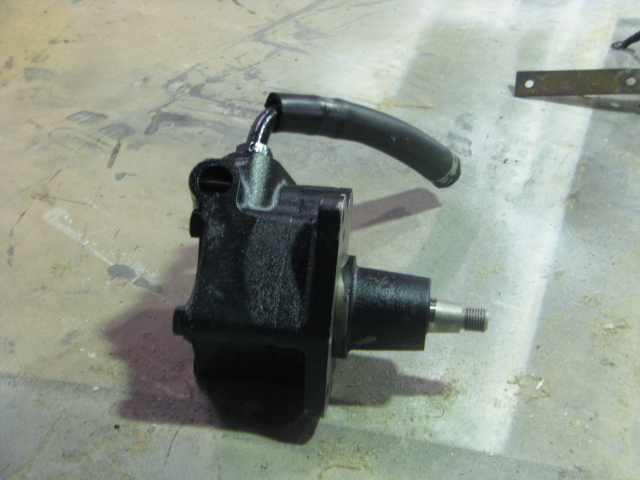

Work shop 7 003 Work shop 7 004

The original shaft has a straht shaft where the pulley fits but the new one has a taper with a slot for a woodruff key.

A new pulley was also installed with a taper bore ,thankfully available from the classic center.

Bosch Mechanical Fuel Injection

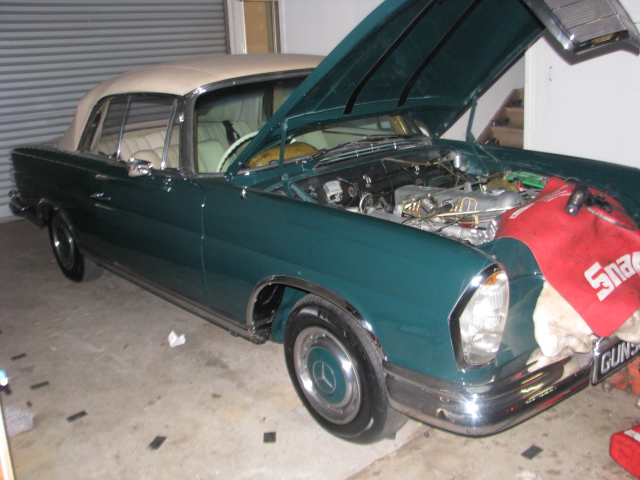

A new Job into the shed is this lovely 220SE cabrio with 71,000 miles on the clock. As with a lot of these low mileage injected Mercedes , lack of use is a killer and this one is a prime example . The car has been hard to start with plug fouling and blowing smoke. The valve guide seals were replaced last but what is actually happening is that the injection pump oil seals have failed.

workshop 6 053

Symkptoms were very typical, hard starting from cold, and sluggish running especially when cold. Sluggish aceleration was another red flag > Did the usal check by disconnecting the throttle and opened it up from idle, it stalled almost imeediately which,although the plugs indicated a rich mixture,the engine cut out. This meant it was running lean.

A quick easy check!.

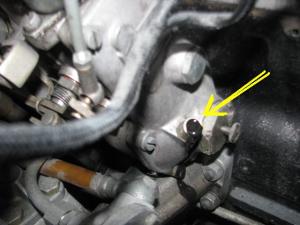

Next,I unscrewed the cam box dipstick to reveal this  black substance oozing from the dip stick port….

workshop 6 052

The oil seals in the pump have failed, sending oil into the cam box which slows down the governor leading to sluggish acceleration ,and this oil also gets into the fuel being injected leading to the plug fouling and intermittent exhaust smoke problems.

Next job is to examine the engines thermostat to make sure it is working correctly. A cold running engine with MFi will always run rich because the MFi’s own thermo control thinks it’s cold and keeps the pump delivering extra fuel. This rich running do0es and will cause bore wear,and very rapidly too.
