Mercedes 220SE restoration

KONICA MINOLTA DIGITAL CAMERA

Front Suspension restoration

As can be seen the engine mounts were the wrong type and totally worn out .

KONICA MINOLTA DIGITAL CAMERA

The brakes are stripped off and a note taken of the various colour splashes which indicate the spring specs, the check marks (yellow and white) for the bolts which were applied in the factory to show that the bolts were tightened correctly.

KONICA MINOLTA DIGITAL CAMERA

KONICA MINOLTA DIGITAL CAMERA

KONICA MINOLTA DIGITAL CAMERA

KONICA MINOLTA DIGITAL CAMERA

KONICA MINOLTA DIGITAL CAMERAAfter stripping down,inspecting and repainting everything the Front axle is reassembled with new parts as required.

KONICA MINOLTA DIGITAL CAMERA

Front brakes have been converted to discs and the hubs are fitted with new rotors.

KONICA MINOLTA DIGITAL CAMERA

The various colour splashes are redone

KONICA MINOLTA DIGITAL CAMERA

New Brake hoses are in the red plastic bags to protect them while the front axle is reassembled.

Mercedes 220SE Restoration

 The Bonnet has been stripped to the metal and primed several times and is at last getting smooth enough . KONICA MINOLTA DIGITAL CAMERA

The Roof however is a different matter. It has sever damage all over it some of which i hammered out and metal finished but some is too badly damaged to completely remove so it has been leaded . The darker spots are Low spots and the lighter spots are high spots revealed in the first primer and guide coats. It’s as if someone had gone over the roof with a ball pien hammer KONICA MINOLTA DIGITAL CAMERA

The boot Lid is similar but not as bad as high spots made by things being carried in the have hit the skin . In the meantime other panels are also getting the primer ,sand,Primer,Sand,Primer routine too..

Mercedes 220SE restoration part11

The flex joint bellows on the rear axle have been replaced with a new genuine part. The homokinetic  was examined and found to be in good condition .

IMG_0129

This is the center rear axle pivot pin. the bushes were examined and found to be in good condition .

IMG_0130

The pinion seal was replaced as a matter of course .

IMG_0131

After 60 years of use ,the pinion flange was showing significant ware …

IMG_0143

The wear is repaired by the use of a SKF ‘speedy sleeve’ which is loctited in place,giving another 60 years of working life.

IMG_0137

Given that the pinion seal and flexboot were leaking badly, the oil had contaminated the center pivot bush so this was replaced with a new item .

IMG_0149

With the Axle and housing, center pivot and pinion flange refitted with a new nut etc , the axle will now be prepared for painting .IMG_0145

Front torque arm bushes will replacing  as will…

IMG_0148

…the rear torque arm bushes which are simply cracked and hardened from the ravages of old age. .



280SE Ute project

Awaiting pick up .

img_0094

img_0093

img_0095

After many months of reassembly and repair work the 280SE  4.5 ute was finally able to driven and delivered back to her owner for minor finish work





Mercedes 220SE restoration pt 6

img_0095-1

Body up on Rotisserie .

The body is now mounted on a rotisserie so repairs and painting underneath can be done .

img_0100

left Front of Floor rail repaired .



img_0099-1

img_0097-1



Left Chassis rail at rear has been patched in the past with piece of Steel Pop riveted in place.

img_0102-1

Patch Removed to reveal a large rust hole underneath . A new piece of steel will be welded into place to restore the strength to the chassis section.

img_0103-1

New Steel welded into the Chassis section .





220SE Restoration pt.5

img_0096-3

Drivers Side sill section at the Front .

this was hidden under patches and water was leaking in through holes causing more rust .

img_0095-4

A closer veiw Showing patches hidden inside.

img_0103-1

Drivers Footwell showing patches and rust holes.

img_0105-2

This cut out and replaced with a new part…

img_0101-3

The part is zinc coated to prevent rust occurring in the future .

img_0096

Firewall Section above the sill.

The rusted parts were all removed and new steel welded in.

img_0109

The drivers side outer sill has been fitted.

The Correct shape end caps are welded into place and the new steel painted with an etch primer.



img_0115

The welded seams are coated with seam sealer prior to the next coat of primer .

img_0093
Body under protection applied

Passenger Side patches removed .

img_0100

New Front end of chassis rail welded in .





220SE Restoration pt 4

IMG_0111 (2)

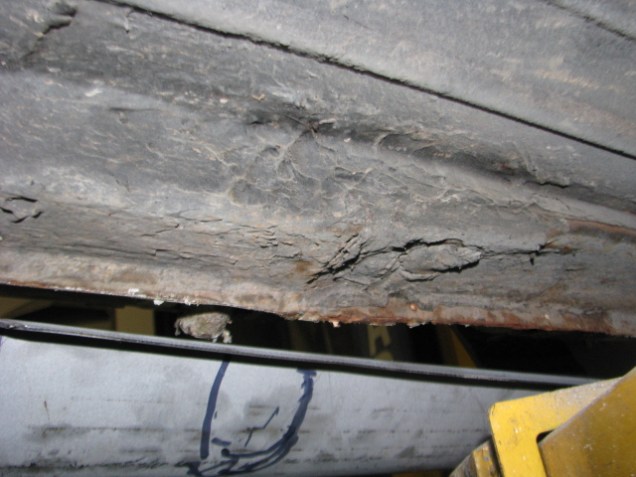

Right Front inner sill section .

This picture shows the inner sill section where it has been patched badly in the past . This will be removed and a proper panel fitted to replace it Object sticking down in the center of the picture is the jack point…!

IMG_0119 (1)

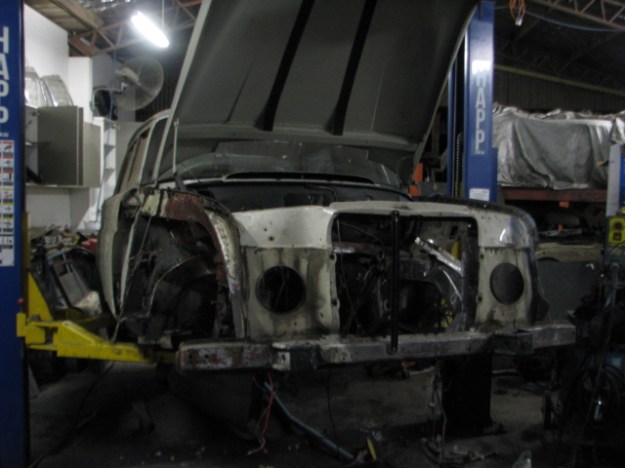

Front Guards have been removed

The guards have to be removed to replace the sills and right front one which is full of body filler.

IMG_0120 (1)

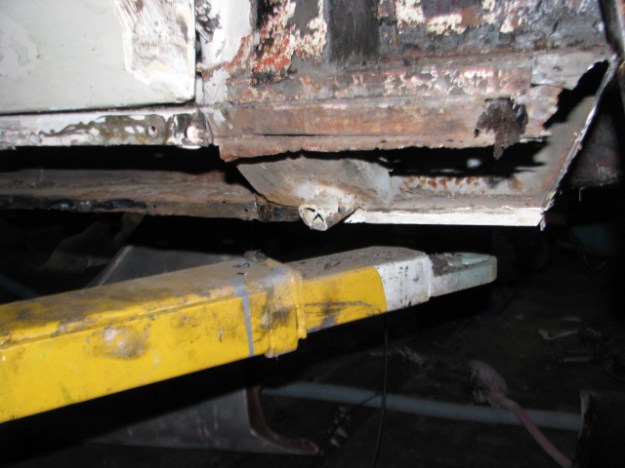

Sill Removed on Right Side .

REmoving this part required a lot of work as the sill was 4 layers thick in places including parts of the original sill . This has created pockets of rust which has to be removed. This is the right Front corner The front end is pointing upwards where it was fitted incorrectly. This has to be removed and replaced with a correct part.

IMG_0123 (1)

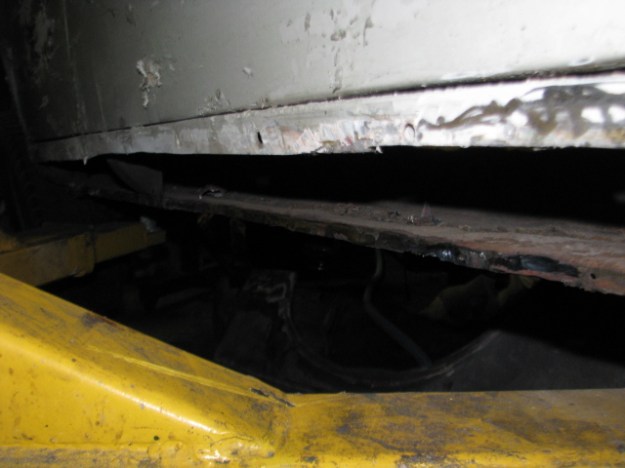

Top Part of Sill to be removed yet.

The Doors have to be removed next so the sills can trimmed off.

IMG_0125 (1)

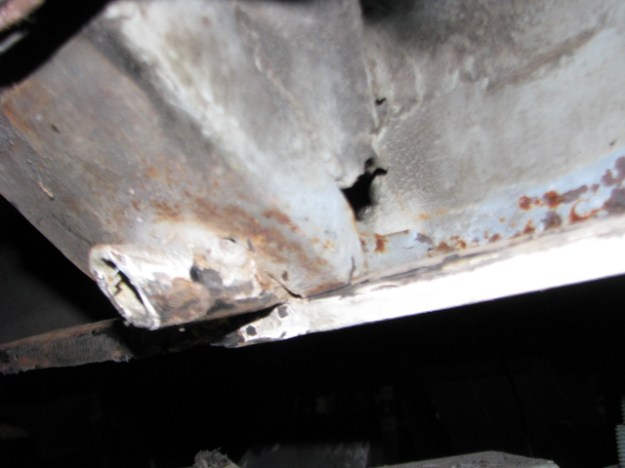

Close up right front jack point

This the jack point which has also been badly patched. This is the bottom of the A pillar and has a patch on it ,again it has to be removed and repaired correctly .It’s not connected to the body at the rear ,which is a major safety issue as it can collapse if the car is lifted on the jack point.

IMG_0122 (1)

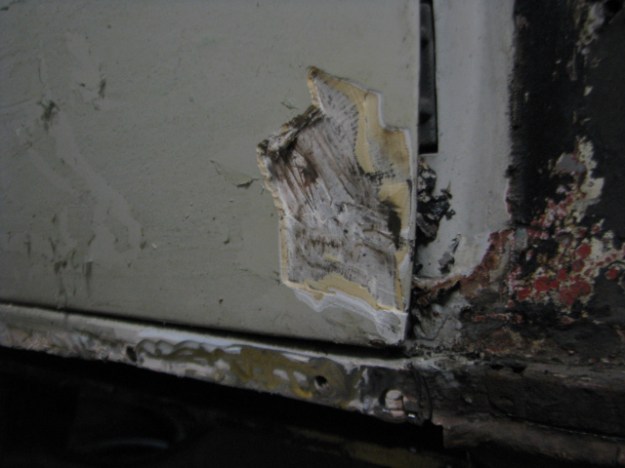

The Doors are going to be replaced…

Because they have large amounts of filler which would have to be removed,then replaced as the car is going to be repainted and there is the real risk that the rust underneath the filler will get worse.

IMG_0113 (2)

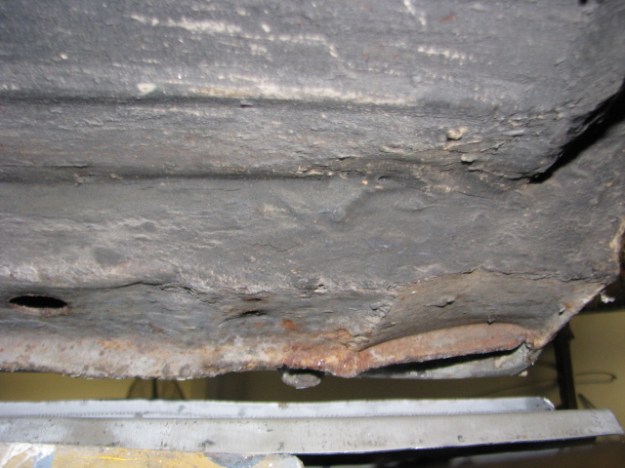

Left Front inner sill section.

Again another part which was patched badly in the past and again this will be removed and repaired correctly.



220SE restoration Pt 3

IMG_0115

New old stock chassis member to replace the damaged part

Although it is a bit shelf soiled, this part is both rare and in very good condition ,a lucky find!!.

IMG_0093 (1)

To fit the new Chassis rail, the old one has to be removed .

IMG_0094 (1)

Some hidden damage that will be repaired, note the body filler used to hide rust holes.

The firewall has a few dents where the chassis rail pushed back against  it. These will be repaired before the new part is fitted.

IMG_0095 (1)

body filler over rust holes and distorted panel section.

IMG_0096

Rusty damage in the firewall where the chassis rail butts up.

IMG_0097 (1)

Rusted out section. Front guard had been welded on ….. not good!.

IMG_0098

Paint removal has started.

220SE Restoration .pt 2

IMG_0115

After Removing the Front bumpers , this tell tale was discovered, a spacer between the Chassis bumper mount and the bumper iron.  Someone had done this to allow the front bumper to  appear to sit evenly . A closer look under the car was necessary .

IMG_0114

This picture shows a group of creases in the left front chassis leg

Because i intend to refinish the under side in the correct PVC undercoating I had begun to strip the bituminous underseal that had been applied in the past . This stuff causes rust rather than protect against it .  The front of the left hand chassis leg is bent backwards with a large crease in it.

IMG_0113

The Circles out line the easiest visible damage which had been covered with body filler to disguise it.

The Chassis leg will have to be replaced to repair the damage .

IMG_0100

More damage and bad repairs have been discovered in the sill sections . where the remnants of one the jacking points has been discovered albeit with some bad patches and would have been too dangerous to use.

The sills on either side have been patched several times over the decades to hide rust, the one above was removed and discovered to have been held on with contact glue…..

IMG_0098

The Circle indicates an area where the sill is 4 (four) layers thick of rusted metal and body filler with patches applied with contact adhesive.

Close up of one of the patches which looks to have been cut from the side of an old fridge.



220 SE Cabrio 1St engine start

 The Cabriolet gets it’s new engine and after a few minutes cranking ,bursts back into life!.
