Mercedes Benz 300SEL 6.3 restoration Project

IMG_0058 IMG_0059 IMG_0060

This is RHD 6,3 #2206 . The engine is incomplete and the drivers side sill/rocker  is rotten but the rest of the car is surprisingly sound but in need of a full restoration .RHD 6.3’s are too rare to part out and i would rather restore this car anyway….. or build a historic racer for weekend fun.

IMG_0041

A great score!

For my own 6.3 I needed a new radiator and had thought of eitherr making a newer one out of alloy but then i found this on ebay..

A brand new old stock 6.3 radiator for .  Not $5000 AUD , Not $2500 USD as demanded for a new one but …………. $275.  Still in it’s original box.

IMG_0009 IMG_0010 IMG_0011

300 SEL 6.3 up and running

A short video showing the 6.3 up and running to check it’as C/O level at hot idle .

Mercedes Benz 300SEL 6.3 repairs

IMG_0239OK, ,more progress on the 6.3. The fuel is being replace and this pic shows why. Many years ago someone has crushed it by lifting the car incorrectly with a hoist ,jack or….forklift. In fact it was squashed in many places.

next pic shows one of the other crush points.

IMG_0241

IMG_0242Next job is the Fuel lift pump.

As can be seen in the pic,the pump was mounted solidly and is 150mm too high,meaning that once the fuel level drops to 1/3rd tank level the pump was starting to starve for fuel . These pumps are not a suction pump,but a pressure pump.

6.3 major service

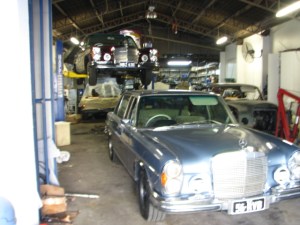

IMG_0199Up on the hoist, the steering box coupler has been replaced ,Other jobs required are a new flex disc ,drive shaft universal joints and center support bearings. The diff support pivot bush was worn out so the diff was removed.

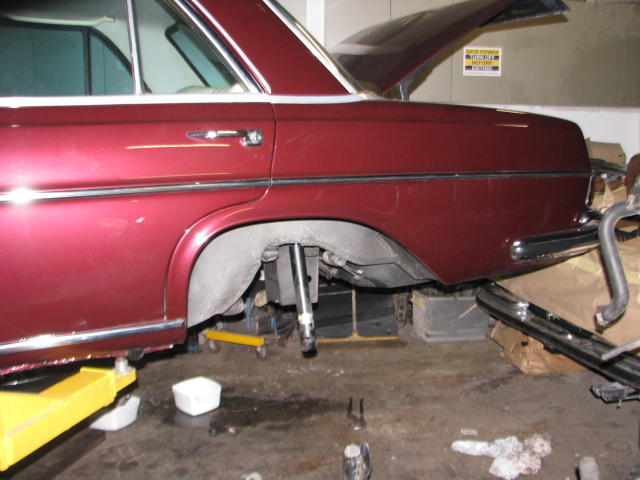

IMG_0201

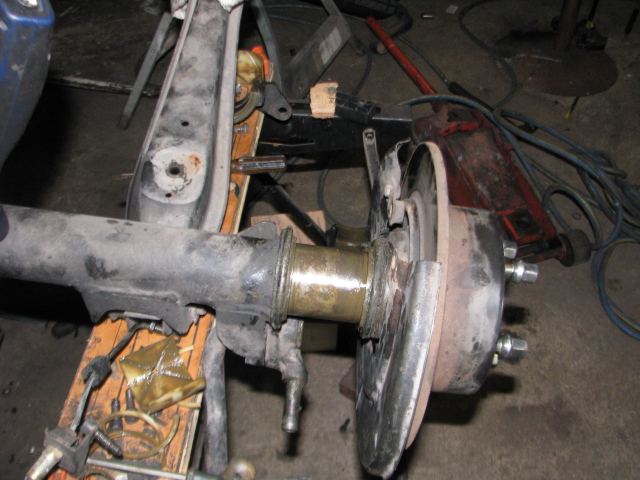

IMG_0202The brake hold down (or anti dive mechanism ) device was stripped and overhauled with new seals and bushes. The shafts were a bit stained from water getting in but otherwise OK.

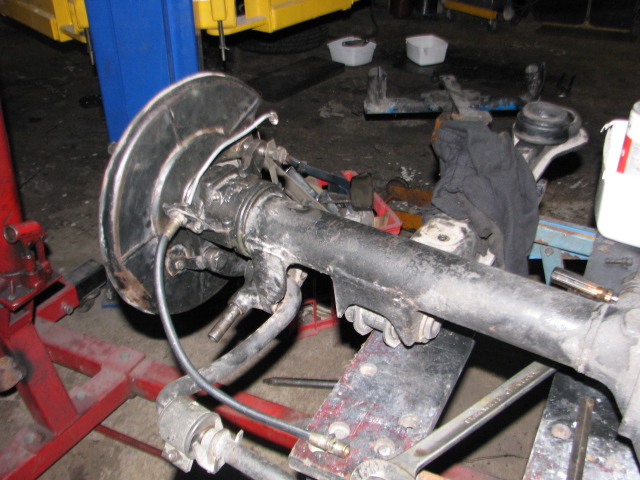

IMG_0203 IMG_0204 IMG_0206\

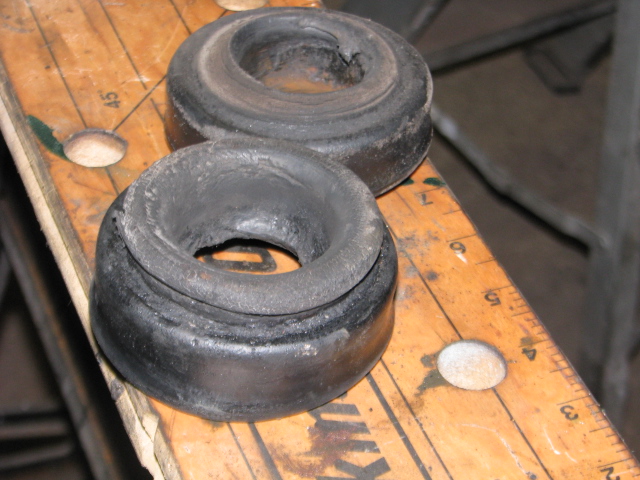

The torque arm bushes will be replaced as these look to be the original do nuts and are as hard as rocks.

IMG_0207

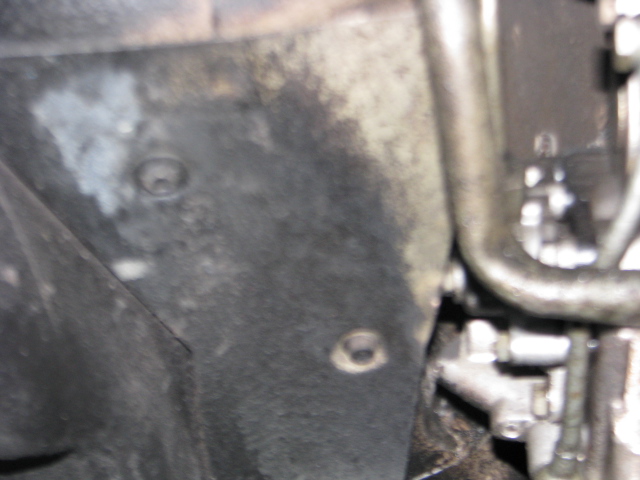

IMG_0208a bit hard to see in this shot,but this is a heat sheild uder the drivers foot well,which will be removed and cleaned so it does it’s job properly.
