Mercedes 220SE Restoration

 The Bonnet has been stripped to the metal and primed several times and is at last getting smooth enough . KONICA MINOLTA DIGITAL CAMERA

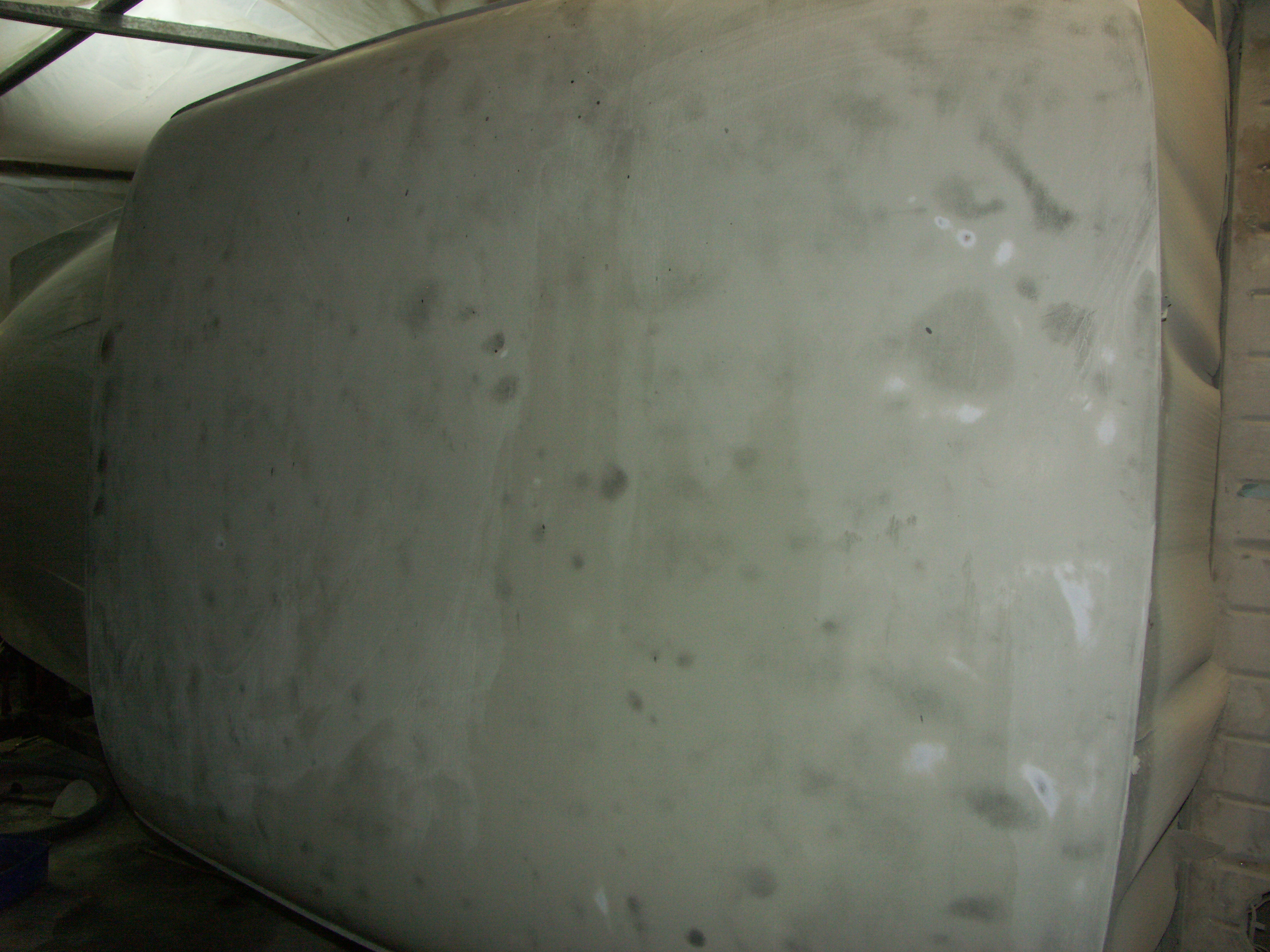

The Roof however is a different matter. It has sever damage all over it some of which i hammered out and metal finished but some is too badly damaged to completely remove so it has been leaded . The darker spots are Low spots and the lighter spots are high spots revealed in the first primer and guide coats. It’s as if someone had gone over the roof with a ball pien hammer KONICA MINOLTA DIGITAL CAMERA

The boot Lid is similar but not as bad as high spots made by things being carried in the have hit the skin . In the meantime other panels are also getting the primer ,sand,Primer,Sand,Primer routine too..

Mercedes 300 SE W112 oil eak repair

IMG_0093

i rebuilt this engine 3 years ago but it was plagued with a leaky rear seal . It’s a 10 hour job to get it out of the car and the car isn’t driven much so it took a while to fit it into the schedule .



Mercedes 300SEL 6.3 garden find.

6.3 #2206 has been removed from  my neighbours front yard to go off to her new owner to get the restoration she deserves.

Mercedes Benz 250S for sale.

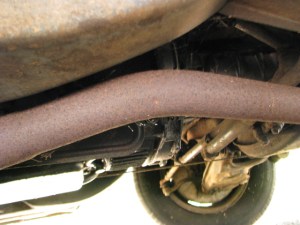

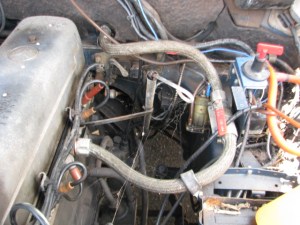

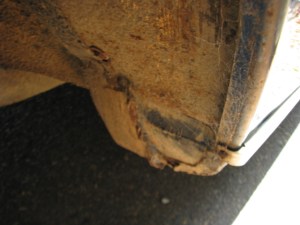

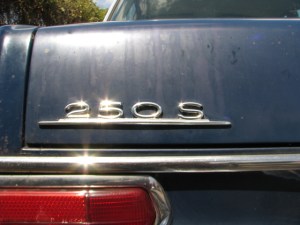

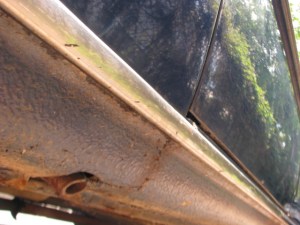

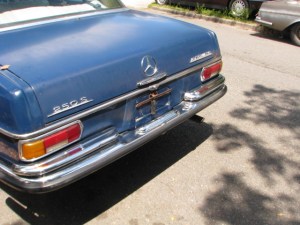

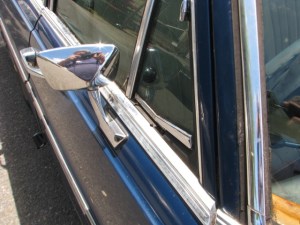

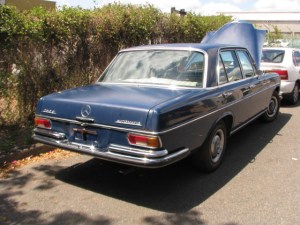

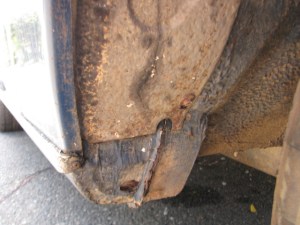

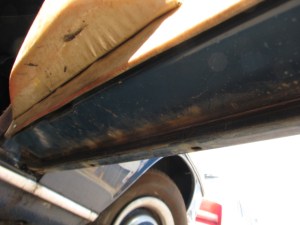

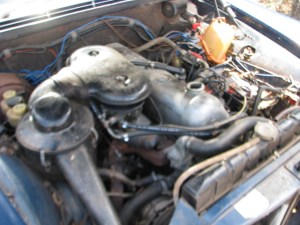

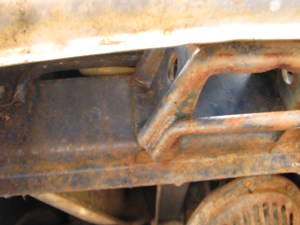

IMG_0053250 S in very straight condition. Been off the road since 2010 due to a minor fault. This is a project car and will require normal work to get registration etc . There is very little rust in the right front sill front and the rear boot box bottom,right hand side. IMG_0052

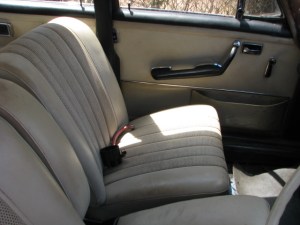

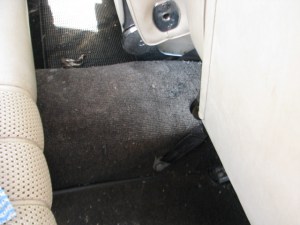

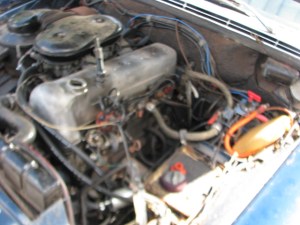

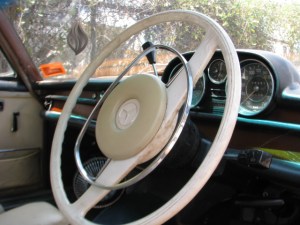

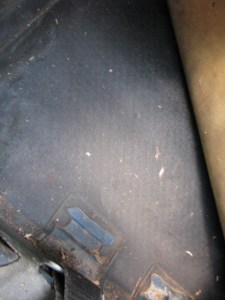

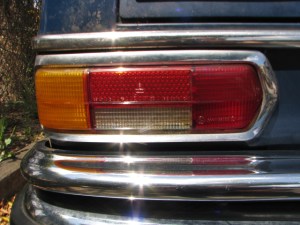

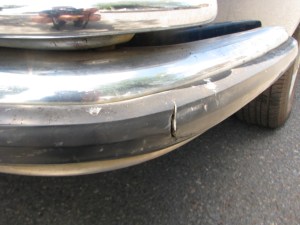

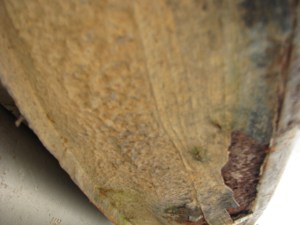

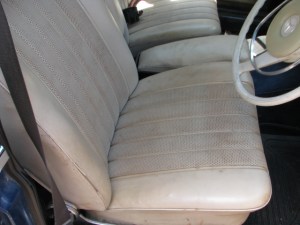

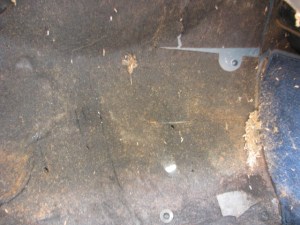

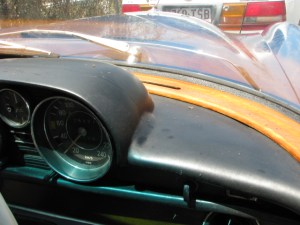

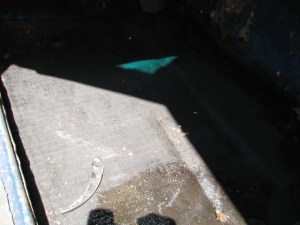

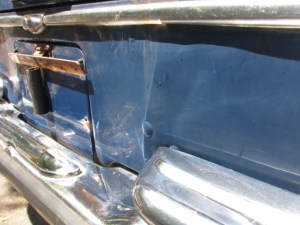

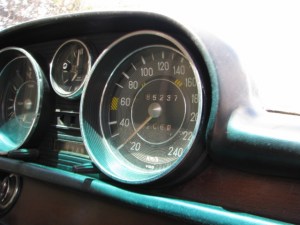

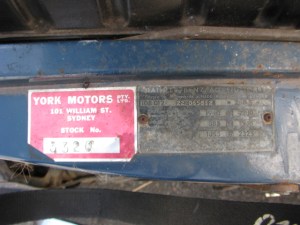

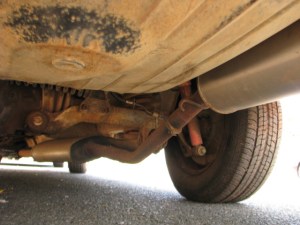

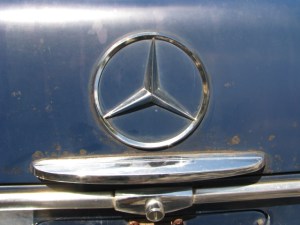

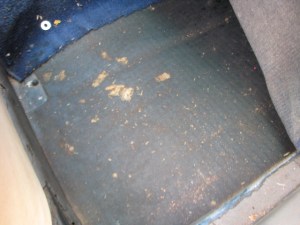

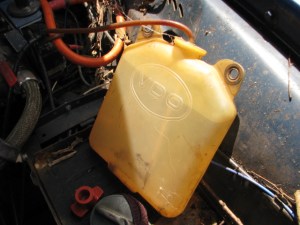

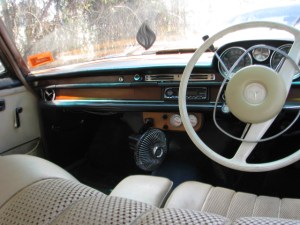

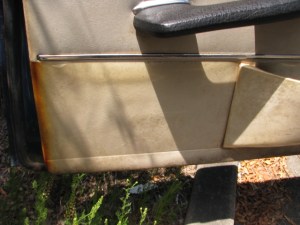

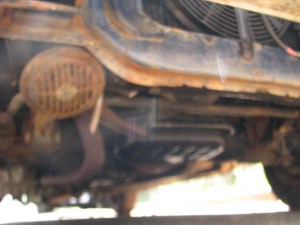

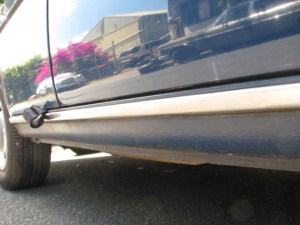

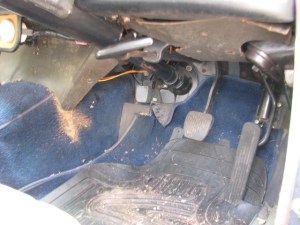

No rust in the doors or floors!! no dash cracks ,and the MBtex seats are still very good. Original boot mat is in very nice condition . IMG_0056IMG_0065 (1)IMG_0069IMG_0070IMG_0058 (1)IMG_0057IMG_0067 (1)IMG_0068 (1)IMG_0064 (1)IMG_0081IMG_0082IMG_0079IMG_0080IMG_0087IMG_0084IMG_0054IMG_0055IMG_0059 (1)IMG_0060 (1)IMG_0061 (1)IMG_0066 (1)IMG_0073IMG_0074IMG_0075IMG_0076IMG_0077IMG_0078IMG_0083IMG_0085IMG_0086IMG_0088IMG_0089IMG_0090IMG_0092IMG_0093IMG_0094IMG_0095IMG_0096IMG_0097IMG_0098IMG_0099IMG_0101IMG_0100IMG_0102IMG_0103IMG_0104IMG_0106IMG_0107IMG_0108IMG_0109IMG_0100IMG_0102IMG_0103IMG_0104IMG_0106IMG_0107IMG_0108IMG_0109IMG_0111IMG_0112IMG_0113IMG_0114IMG_0116IMG_0117IMG_0119IMG_0121

Mercedes Benz 300SEL 6.3 restoration Project

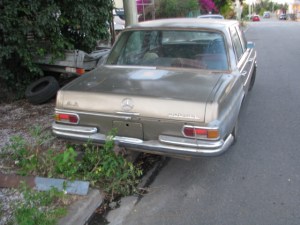

IMG_0058 IMG_0059 IMG_0060

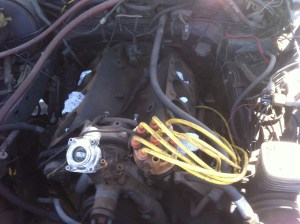

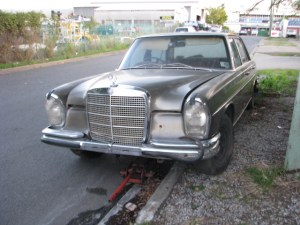

This is RHD 6,3 #2206 . The engine is incomplete and the drivers side sill/rocker  is rotten but the rest of the car is surprisingly sound but in need of a full restoration .RHD 6.3’s are too rare to part out and i would rather restore this car anyway….. or build a historic racer for weekend fun.

IMG_0041

A great score!

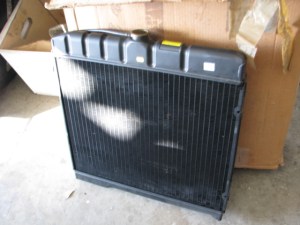

For my own 6.3 I needed a new radiator and had thought of eitherr making a newer one out of alloy but then i found this on ebay..

A brand new old stock 6.3 radiator for .  Not $5000 AUD , Not $2500 USD as demanded for a new one but …………. $275.  Still in it’s original box.

IMG_0009 IMG_0010 IMG_0011

300 SEL 6.3 up and running

A short video showing the 6.3 up and running to check it’as C/O level at hot idle .

300SEL 6.3 progress…

IMG_0313

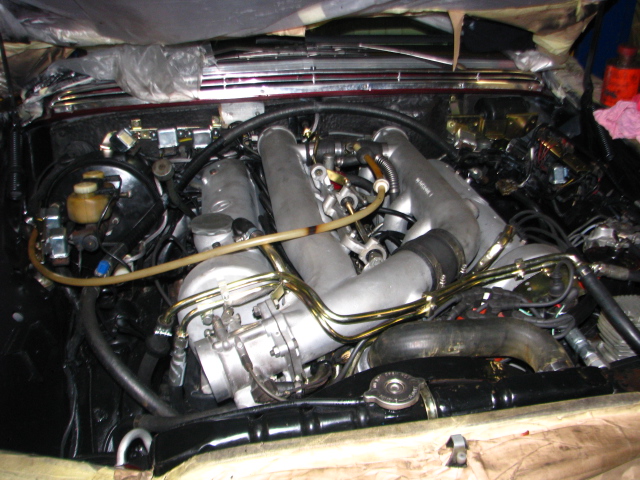

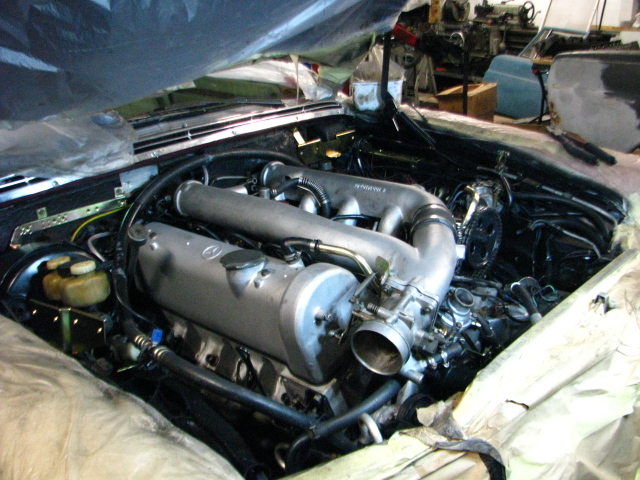

The engine is now together and just needs tuning , after the heads were checked an the tappets adjusted.

IMG_0314The shroud was derusted ,then painted with POR15 gloss black .

IMG_0321

Mercedes Benz 300 SEL 6.3 cylinder Head swap.

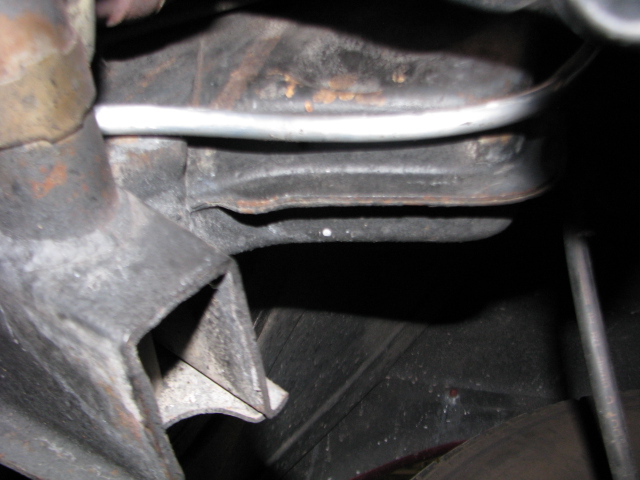

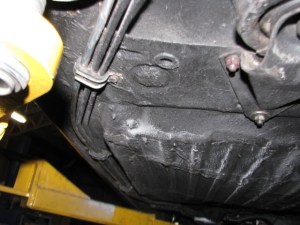

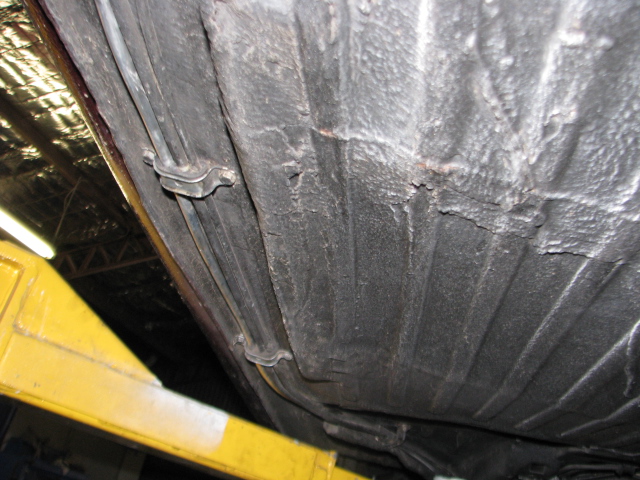

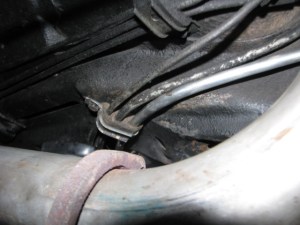

IMG_0253A new fuel line has been fitted using the original brackets etc which were in good condition after 40 years…!

IMG_0254 WIMG_0255 IMG_0256

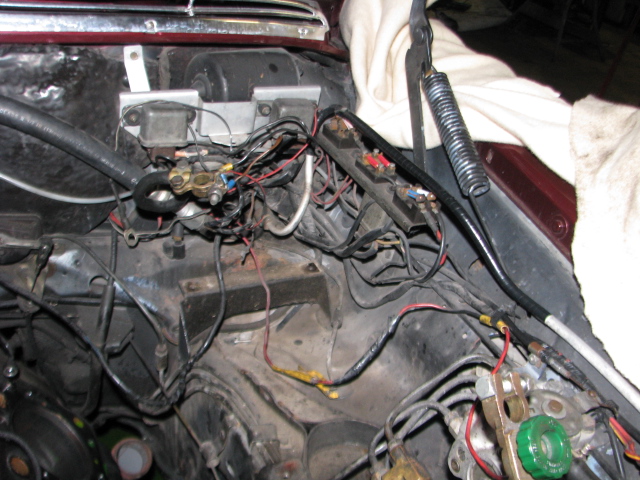

The engine bay needed a clean and after a wash it was revealed to have a few places where the paint had disappeared  because of engine heat . IMG_0261

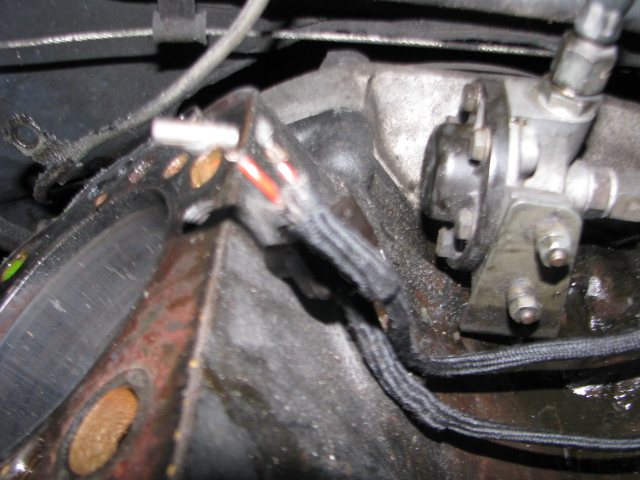

With the heads off ,a few little things became apparent such as this feed wire for one of the thermal time Switches. A couple of the firewall grommets needed replacing .Missing grommets allow noise,fumes etc into the cabin .

IMG_0263

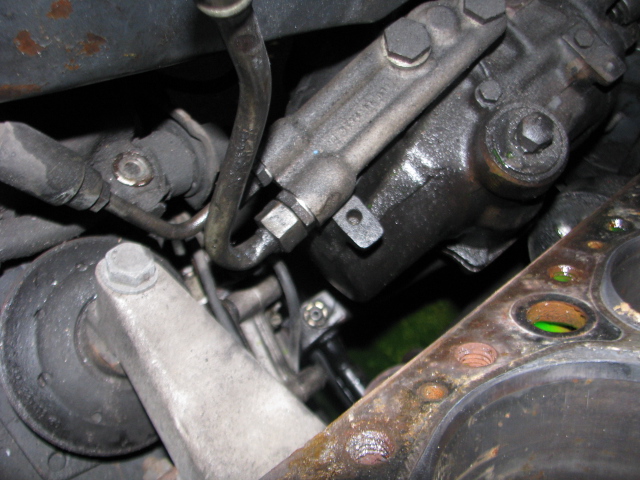

The Steering box was leaking through that round part on the top part of the

Steering box . A new seal had to made for this and the two copper washers were missing. the cover nut and lock nut were both loose. The oil return pipe on the steering box has also been damaged in the past when some one bent it.

IMG_0264

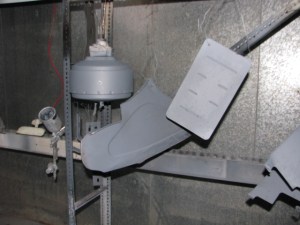

IMG_0271With the heads off and the engine due for a repaint ,the booster was removed and rust removed . it was then etch primed and primed. The other objects in the picture belong to the 280SE 3.5 ute project..

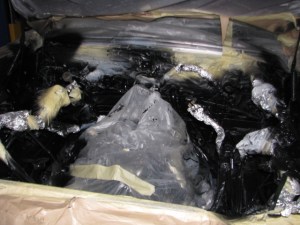

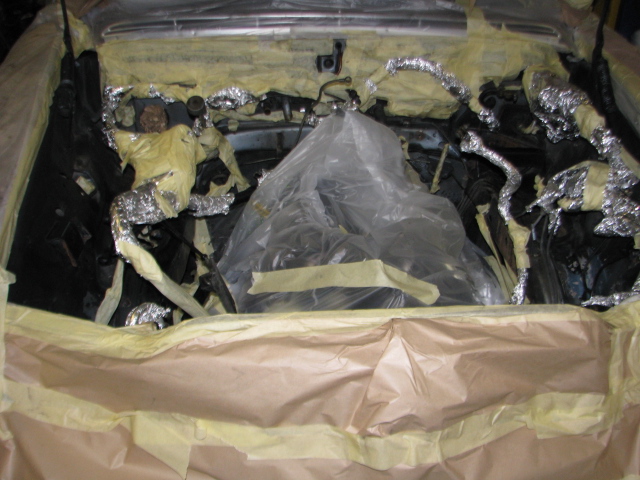

The car was completely masked up and the engine bay resprayed in the black satin as before.

BUT before the black could be applied and the engine bay was still in primer one or two other jobs need doing.

IMG_0275 IMG_0276

IMG_0278IMG_0280

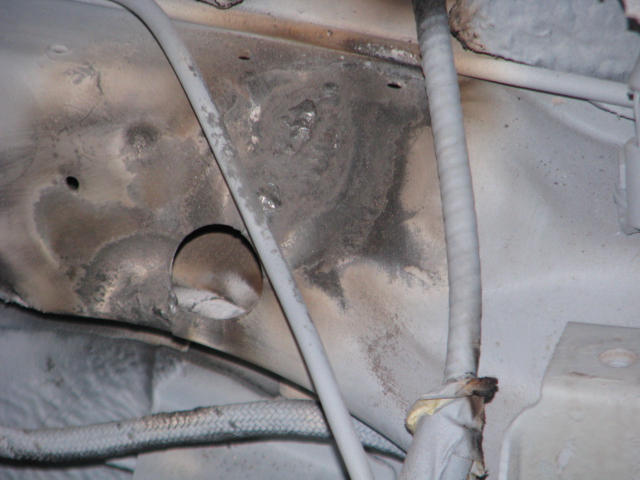

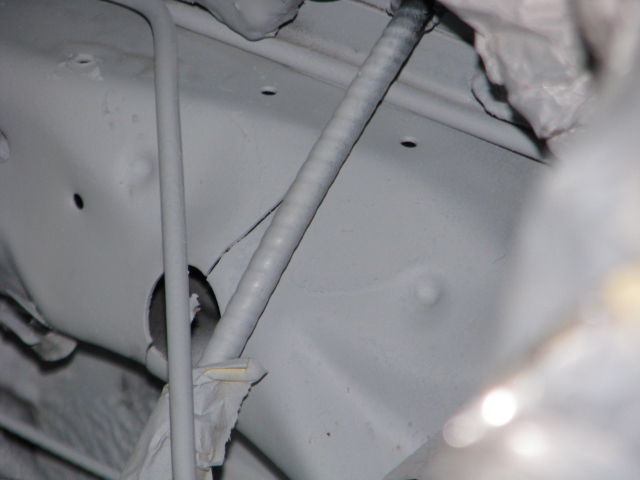

The firewall brace on the left hand side was cracked almost right around and had to be welded up.

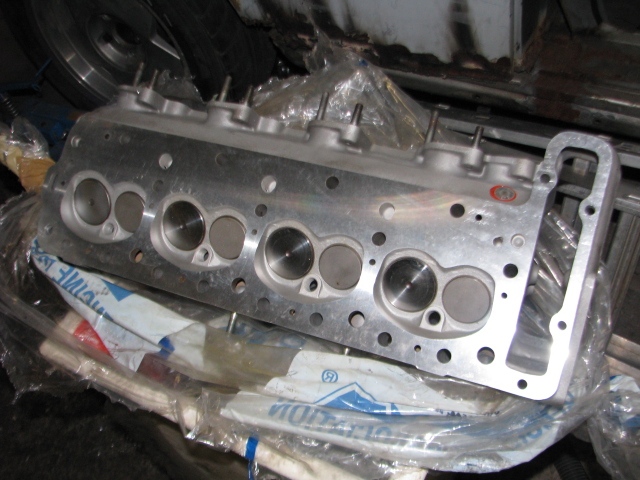

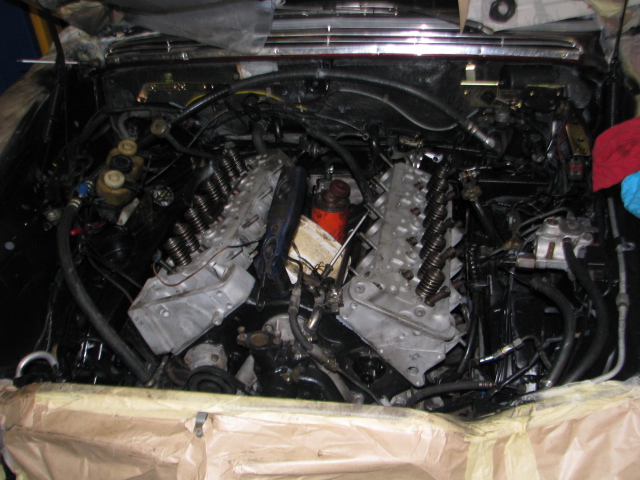

With the engine bay now painted the heads were fitted ,along with newly plated relay brackets . There is a lot less wiring now the original loom has been cleaned up and things such as a mobile phone loom removed .

IMG_0281 IMG_0282 IMG_0286 IMG_0287

Mercedes Benz 300SEL 6.3 repairs

IMG_0239OK, ,more progress on the 6.3. The fuel is being replace and this pic shows why. Many years ago someone has crushed it by lifting the car incorrectly with a hoist ,jack or….forklift. In fact it was squashed in many places.

next pic shows one of the other crush points.

IMG_0241

IMG_0242Next job is the Fuel lift pump.

As can be seen in the pic,the pump was mounted solidly and is 150mm too high,meaning that once the fuel level drops to 1/3rd tank level the pump was starting to starve for fuel . These pumps are not a suction pump,but a pressure pump.
