Mercedes 220SE Restoration

Leave a reply

 The Bonnet has been stripped to the metal and primed several times and is at last getting smooth enough . KONICA MINOLTA DIGITAL CAMERA

The Roof however is a different matter. It has sever damage all over it some of which i hammered out and metal finished but some is too badly damaged to completely remove so it has been leaded . The darker spots are Low spots and the lighter spots are high spots revealed in the first primer and guide coats. It’s as if someone had gone over the roof with a ball pien hammer KONICA MINOLTA DIGITAL CAMERA

The boot Lid is similar but not as bad as high spots made by things being carried in the have hit the skin . In the meantime other panels are also getting the primer ,sand,Primer,Sand,Primer routine too..

Mercedes 220SE restoration part11

Leave a reply

The flex joint bellows on the rear axle have been replaced with a new genuine part. The homokinetic  was examined and found to be in good condition .

IMG_0129

This is the center rear axle pivot pin. the bushes were examined and found to be in good condition .

IMG_0130

The pinion seal was replaced as a matter of course .

IMG_0131

After 60 years of use ,the pinion flange was showing significant ware …

IMG_0143

The wear is repaired by the use of a SKF ‘speedy sleeve’ which is loctited in place,giving another 60 years of working life.

IMG_0137

Given that the pinion seal and flexboot were leaking badly, the oil had contaminated the center pivot bush so this was replaced with a new item .

IMG_0149

With the Axle and housing, center pivot and pinion flange refitted with a new nut etc , the axle will now be prepared for painting .IMG_0145

Front torque arm bushes will replacing  as will…

IMG_0148

…the rear torque arm bushes which are simply cracked and hardened from the ravages of old age. .



Mercedes W111 Bonnet/hood part#A1118805657 For sale.

Leave a reply

New Old Stock Mercedes  low Grille Coupe Bonnet . NLA from Daimler AG. Marks in black coating from storage .No Rust. Offers invited.

img_0097img_0098img_0096img_0102img_0103img_0104

220SE restoration Pt 3

Leave a reply

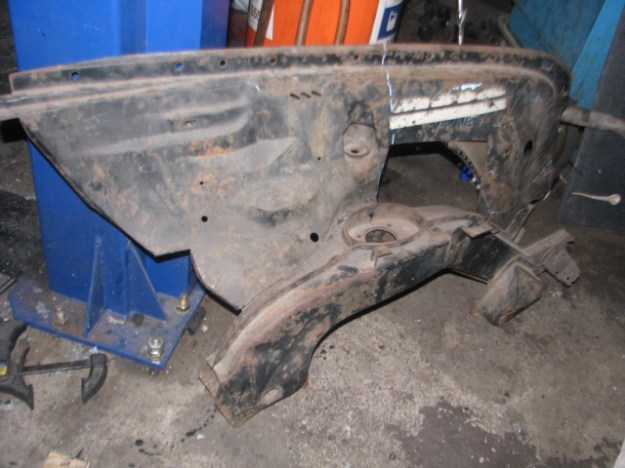

IMG_0115

New old stock chassis member to replace the damaged part

Although it is a bit shelf soiled, this part is both rare and in very good condition ,a lucky find!!.

IMG_0093 (1)

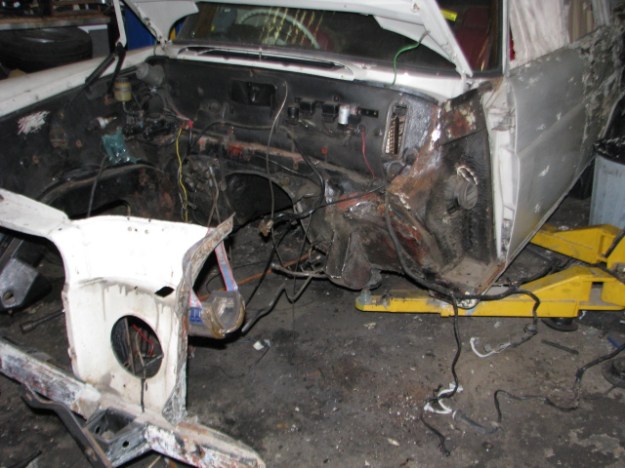

To fit the new Chassis rail, the old one has to be removed .

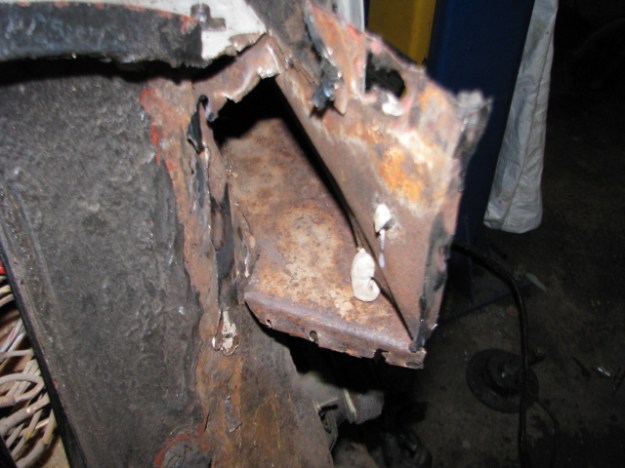

IMG_0094 (1)

Some hidden damage that will be repaired, note the body filler used to hide rust holes.

The firewall has a few dents where the chassis rail pushed back against  it. These will be repaired before the new part is fitted.

IMG_0095 (1)

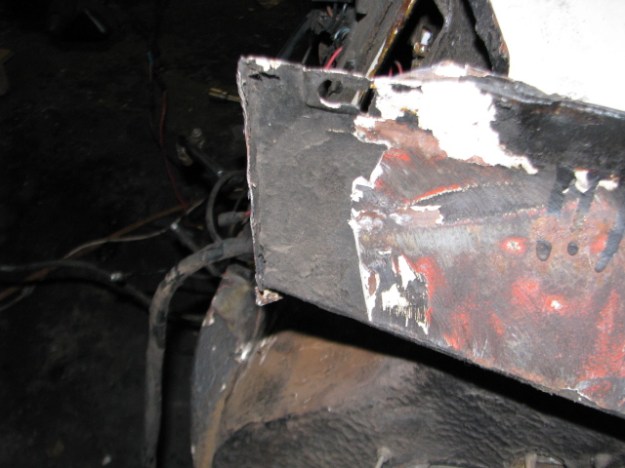

body filler over rust holes and distorted panel section.

IMG_0096

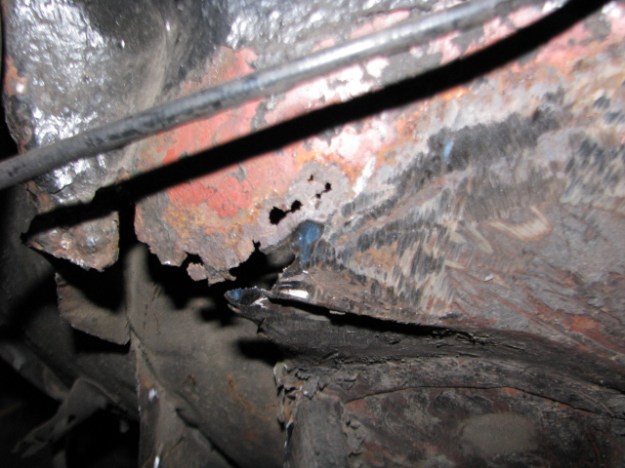

Rusty damage in the firewall where the chassis rail butts up.

IMG_0097 (1)

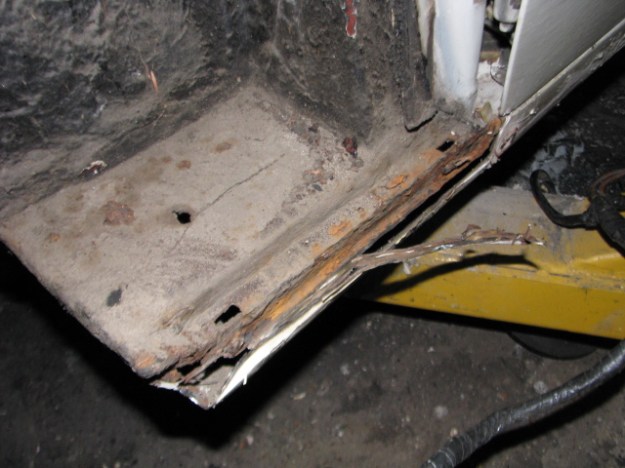

Rusted out section. Front guard had been welded on ….. not good!.

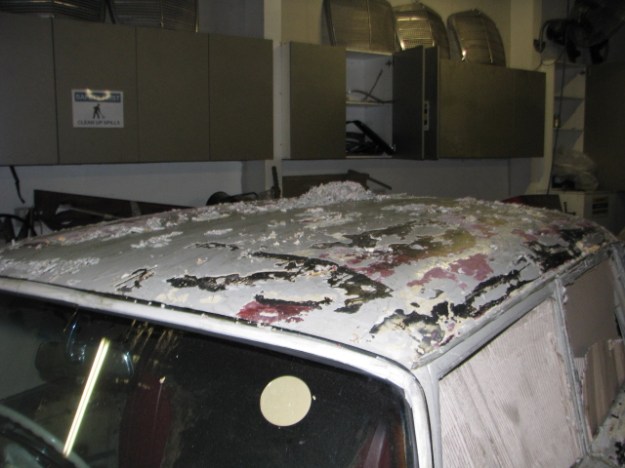

IMG_0098

Paint removal has started.

220 SE Cabrio 1St engine start

Leave a reply

 The Cabriolet gets it’s new engine and after a few minutes cranking ,bursts back into life!.

300SE Lang Rust repair continued

Leave a reply

Paint stripping.

We are now at the stage where the old paint has to be removed and new paint applied since all of the rust has been repaired . The sheet metal is in very good condition under the paint which is nearly all original and never been repainted .



300 SE Lang W112 Rust repair progress

Leave a reply

rear panel rust repair .

The rear panel on this car has had a few hits over the last 51 years and suffered from some pretty bad repair work. To straighten the dents and remove the rust ,caused by leaking tail light gasket i made a patch and cut out the rust with a hole saw.

With access through the hole , I could poke a dolly in and shrink out all the small dents .Last step was to repair the hole where the lights fit .It was pretty tough getting the dings out because the metal had been ground pretty hard in the past when someone has tried to fix the panel in the past.

Mercedes W112 Rust repair ,More progress.

Leave a reply

Rear panel repairs.

The rear panel looked straight to begin with but there was tell tail signs of body filler which was falling out. After stripping it back to the bare steel ,it could be seen tht the panel wasn’t too badly damaged ,

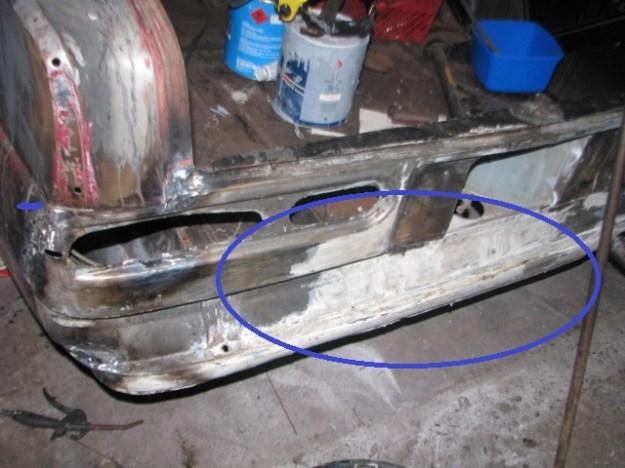

The white stuff is old body filler which will be removed.

IMG_0101

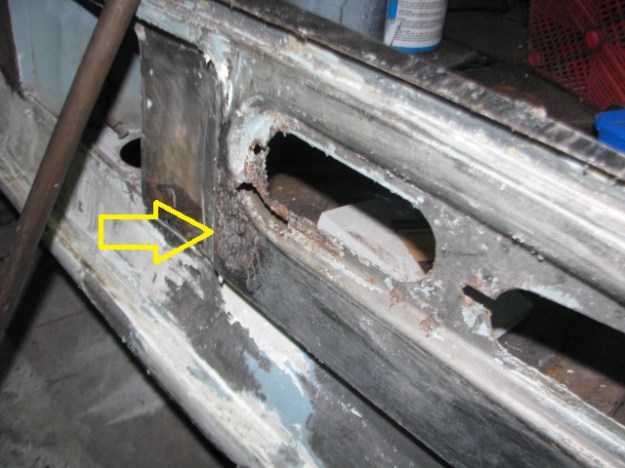

A few small rust outs have been welded up the ring shows more filler which has been parti ally removed.

IMG_0102

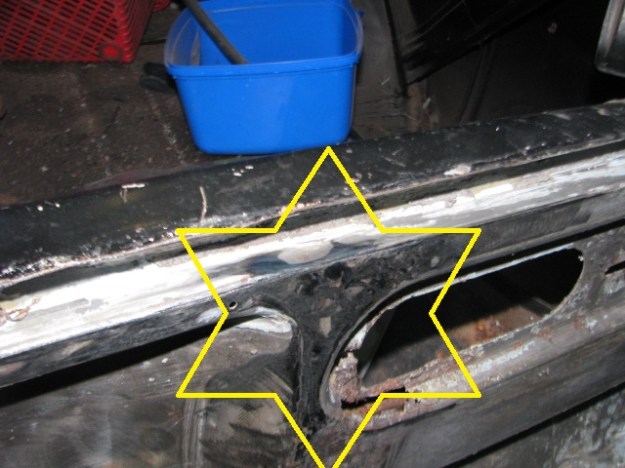

On the right side there is a rust hole which will be repaired with a patch.

IMG_0107

On both sides of the fuel door i had to shrink out a pair of dents which had been filled. Hard to see here but it’s now very smooth .

These are the two dents i removed



Mercedes 300 SE W112 oil eak repair

Leave a reply

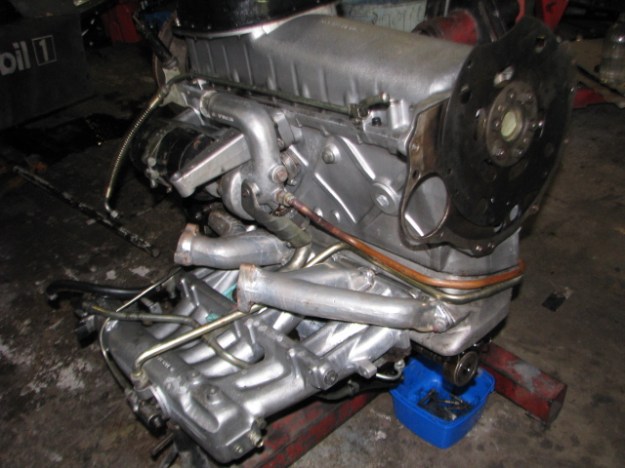

IMG_0093

i rebuilt this engine 3 years ago but it was plagued with a leaky rear seal . It’s a 10 hour job to get it out of the car and the car isn’t driven much so it took a while to fit it into the schedule .



300SE W112 rust repair .

Leave a reply

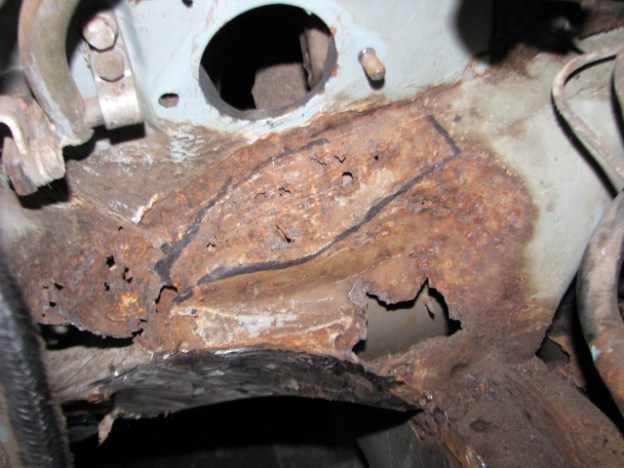

After Christmas 2016 and I’m slowly catching up with all of the work in the shop,first up is further rust repair on the W112  300SE lang. under the booster it had rusted, not badly ,just ugly …

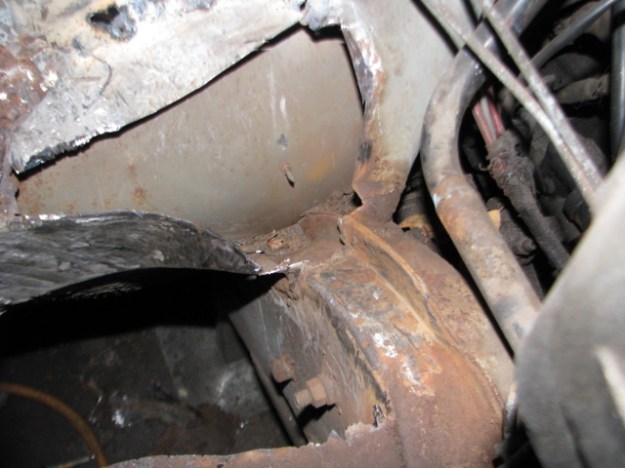

IMG_0085.JPGYears of spilled brake fluid has burnt off the paint ,leaving the steel bare and open to rust.

The rusted parts have been removed and inside the crossmember cleaned and rust treat .

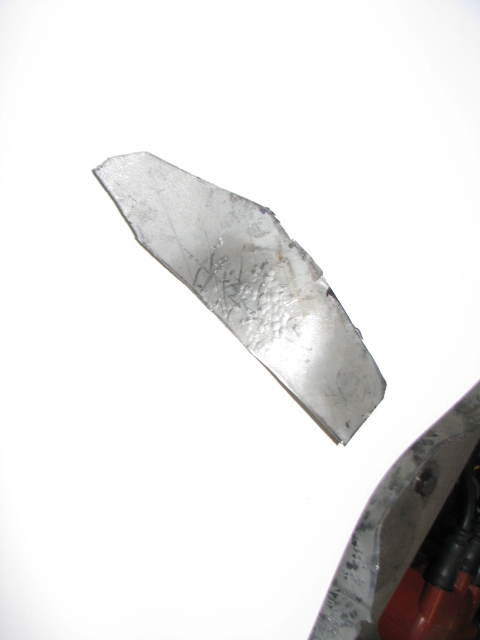

IMG_0083

New top piece has been cut out of Zinanneal 1mm  to match the existing panel,

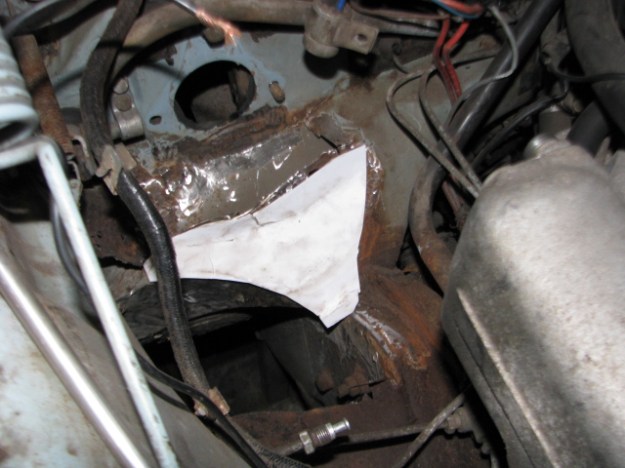

IMG_0084

because of the complex shapes ,the replacements have to made in cardboard first to get all the shapes organised first.
