Tag Archives: Mercedes Benz 250SE W108

W112 Mercedes 300SE Lang ( Long wheel base)

All the way from W.A is this horizon blue 300SE with some serious rust problems. Not so unusual in a finny but serious enough to require a lot of work to rectify.

IMG_0056 (1) IMG_0057 (1) left rear Jack point has basically rusted right away,as someone has found in the past when attempting to lif the car .

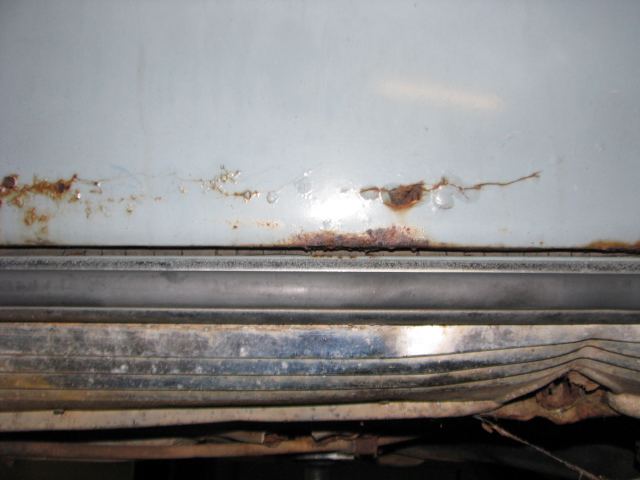

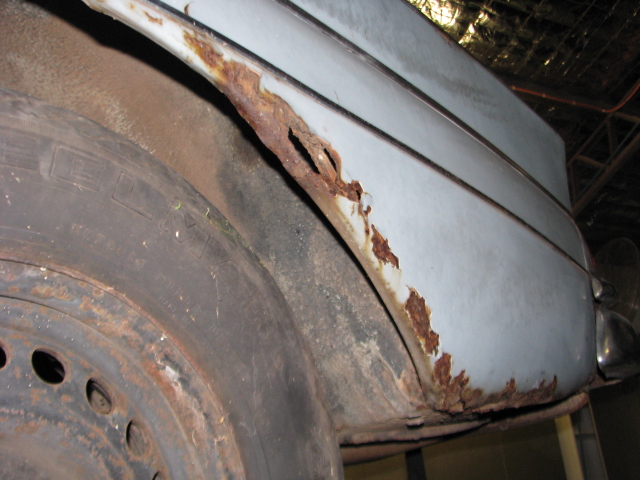

IMG_0058 (2) IMG_0059 (2)

Right

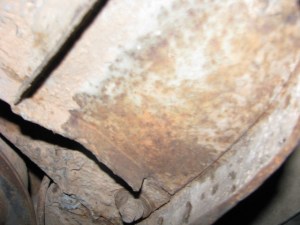

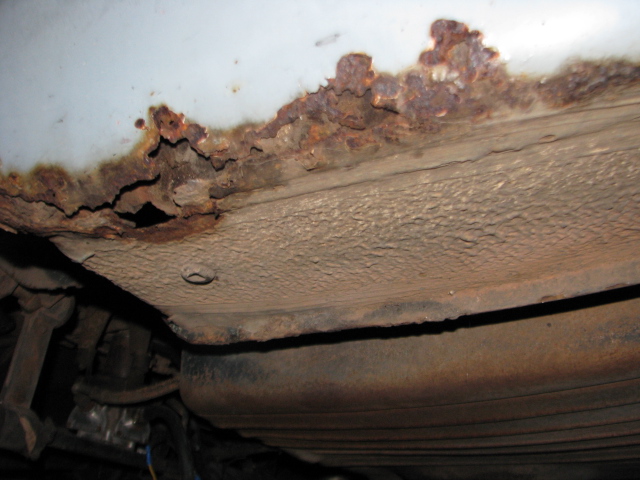

iIMG_0061 (2)Left rear boot box floor ,a normal rust spot and no worse than others .IMG_0062 (2) Rear box section ,no seriouis rust outs.

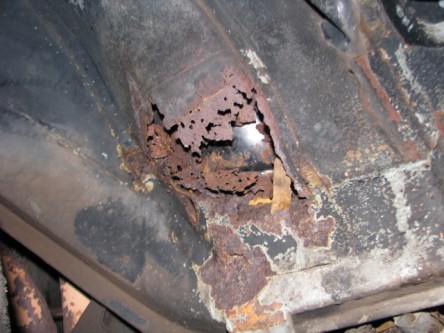

IMG_0069 (1) Right front chassis strengthening member rusted out . Rain water gets inside this section and if the lower drain holes are blocked,they eventually rust away . This particularly bad as that is the air cleaner visible in the center.

IMG_0075 (1) Inner left boot box side .

IMG_0077 (1)inner left rear chassis mount.

IMG_0080 (1) Left rear anti dive link mount

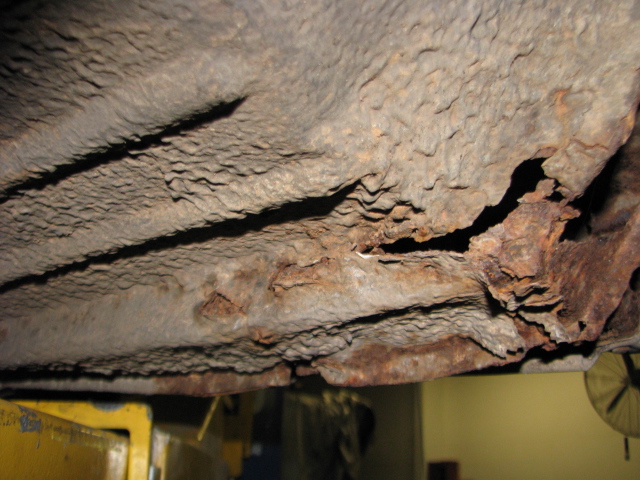

IMG_0070 (1) Inner side of left front sill section .Showing sever rust. this will all be replaced .

IMG_0064 (2)

Steel spring installation where the air springs have been removed .

Mercedes Benz 250S for sale.

IMG_0053250 S in very straight condition. Been off the road since 2010 due to a minor fault. This is a project car and will require normal work to get registration etc . There is very little rust in the right front sill front and the rear boot box bottom,right hand side. IMG_0052

No rust in the doors or floors!! no dash cracks ,and the MBtex seats are still very good. Original boot mat is in very nice condition . IMG_0056IMG_0065 (1)IMG_0069IMG_0070IMG_0058 (1)IMG_0057IMG_0067 (1)IMG_0068 (1)IMG_0064 (1)IMG_0081IMG_0082IMG_0079IMG_0080IMG_0087IMG_0084IMG_0054IMG_0055IMG_0059 (1)IMG_0060 (1)IMG_0061 (1)IMG_0066 (1)IMG_0073IMG_0074IMG_0075IMG_0076IMG_0077IMG_0078IMG_0083IMG_0085IMG_0086IMG_0088IMG_0089IMG_0090IMG_0092IMG_0093IMG_0094IMG_0095IMG_0096IMG_0097IMG_0098IMG_0099IMG_0101IMG_0100IMG_0102IMG_0103IMG_0104IMG_0106IMG_0107IMG_0108IMG_0109IMG_0100IMG_0102IMG_0103IMG_0104IMG_0106IMG_0107IMG_0108IMG_0109IMG_0111IMG_0112IMG_0113IMG_0114IMG_0116IMG_0117IMG_0119IMG_0121

Mercedes Benz W108 250 S recommissioning

A few dodgy things have been uncovered on this car ,such as the gear shift wired together …..

IMG_0013

And a plastic hose wired on for the pressure line to the fuel filter…..

IMG_0014

250SE recommissioning

Today (12/08/15) A new job arrived. A really early W108 250 SE . It wouldn’t start although it would turn over.The First job when ever starting a Mercedes that has sat for several years is drain  the tank…

IMG_0469

IMG_0471

this 4 liters of rotten fuel in a 25 liter bucket… what a rotten stink! I hate this stuff!. The filter was pretty well blocked up. Thank fully a look inside the tank revealed it to be very clean despite sitting for several years.

IMG_0470

So that is replaced.

Next job,replace ALL of the rotten rubber fuel lines. IMG_0477 IMG_0478 IMG_0479

Followed by replacing the fuel filter..

IMG_0472 IMG_0473 IMG_0474 IMG_0475

I’m glad the filter was bravely trying to do it’s job 🙂 .

Once this is out of the way,the tappets have been adjusted but the timing chain needs replacing .All compressions are equal at 150PSi, so far so good….. But the spark plugs,although they look new are all carboned up. Not a good look on a Mfi engine . The Air cleaner needs to be cleaned out and i doubt very much that the oil bath unit has been apart for many many years.

In the meantime a quick look under neath reveals more of the usual things,worn diff bushes everywhere ,spring mount rubbers flogged out and a very leaky diff.

IMG_0480 IMG_0482 IMG_0483

Note the rotten exhaust…nothing like a damp storage area to rot a steel muffler..
