Mercedes W112 Rust repair

IMG_0093

The area under the brake booster on this car was completely rotten so the only way out was to remove all the rust and repair it .

IMG_0085

Most of the rotten parts are removed .And new peices fabricated to replace them.

IMG_0085 (1)

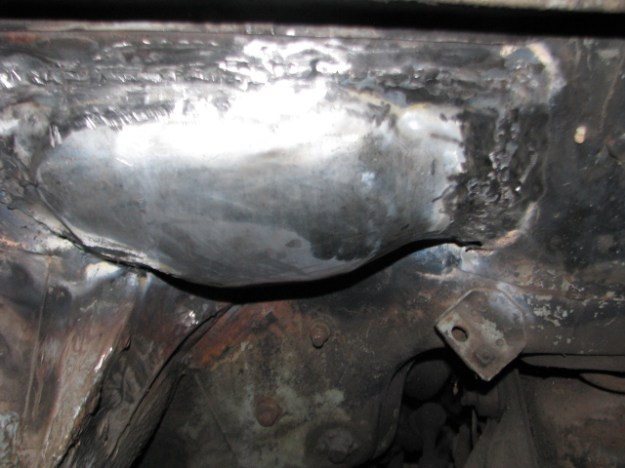

This shaped like this to allow the larger T51 ATe Brake booster to fit.

IMG_0085



The front part of the inner fender section was also rotted out ,Possibly because the lower drain holes had blocked with leaves.

IMG_0082 (1)

With the Rotten parts removed ,a new piece is welded in  on the inner part in the air cleaner section . the curve is too fit the air cleaner housing in place.

IMG_0083 (1)

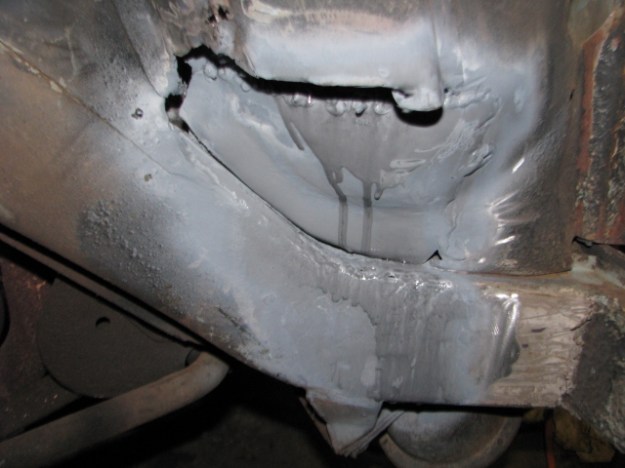

Once welded in place the new peice is etch primed and wax shot up into the frame section to protect it against rust in future.

IMG_0087 (1)

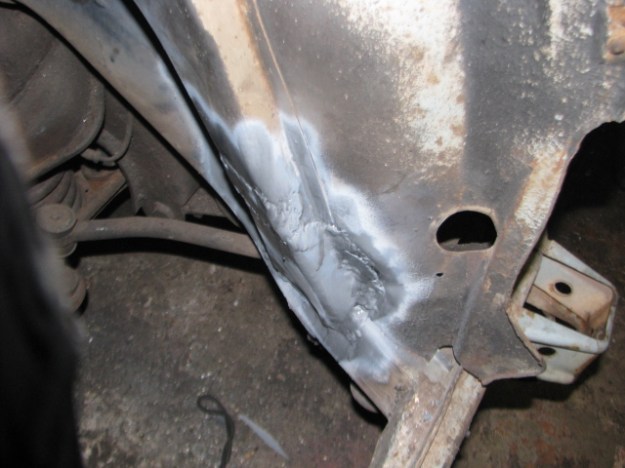

The next part of this is the cover panel. This is welded in place but has been painted inside too .IMG_0089 (1)

A coat of etch primer to protect the past until paint is applied .
