220SE rust repair continued

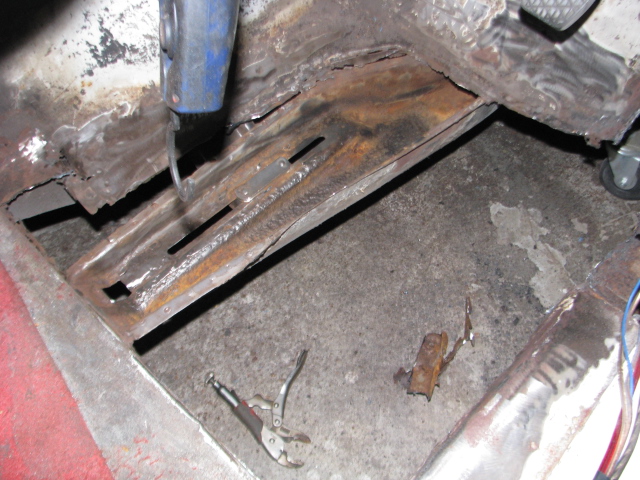

220SE rust repair 021Inside the chassis rail

there is a cover which prevents the ingress of road dirt and water through the slot for the trans cross member bolts. this one had rusted right away and the rust was starting to eat away the inside of the chassis rail

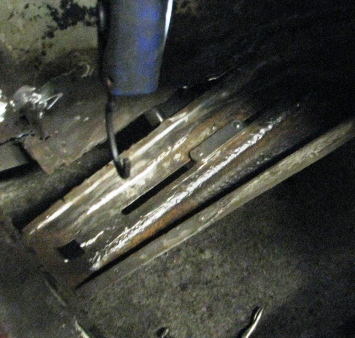

220SE rust repair 020Cleaned up with a wire buff

….then treated with phos acid to convert the remaining rust.

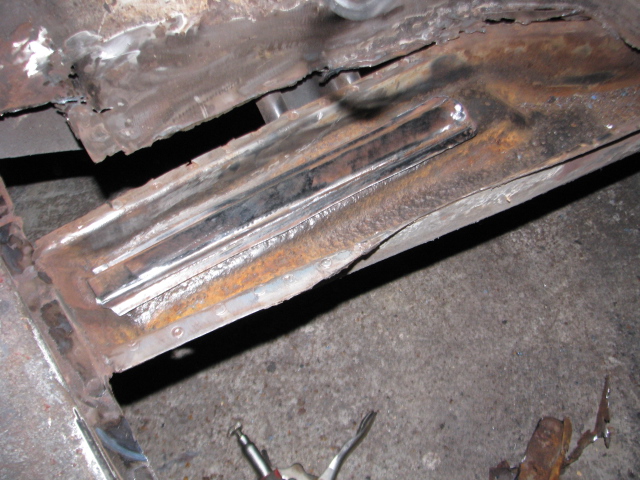

..220SE rust repair 022New cover made and welded in place

this will be painted with a Zinc rich paint and wax treated to prevent rust coming back.

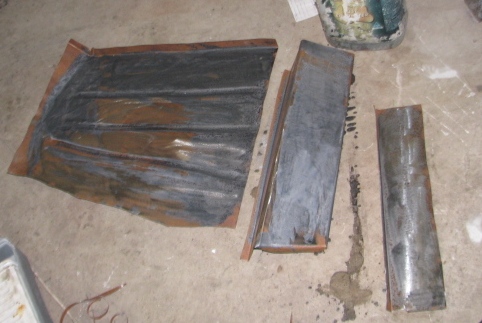

220SE rust repair 023 220SE rust repair 024

New floor,outer sill/chassis rail and seatr box panels roughed out to be welded into place when the new jack points are made . The jack points are welded into the sill box sections
