Mercedes 450SLC C107

I have been asked to give this a bit of a tune up ,mainly a new timing chain , tensioner and rails . The Chain was badly worn but the rails were brown but OK, even though they are dated 1977 !!. IMG_0082

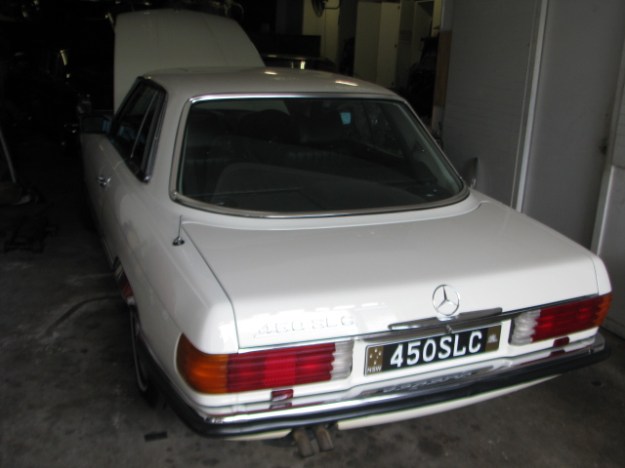

The car has only 120,000 KM’s on the clock and everything seems to point to this being original . Note: it has reflectors on the back, this marks it as being a South African car.

While it is here it will undergo a few repairs ,namely a new floor and redoing of repairs done by a well known vehicle restoration shop which can only be described as horrendous.

IMG_0088

This is typical of the other shops disastrous work, dodgy ill spaded repairs covered in black bituminous underseal.

IMG_0089

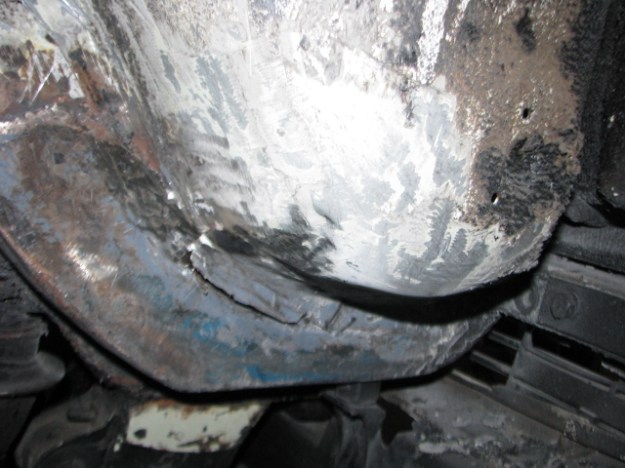

under this black stuff is a lot of bent and deformed metal which will have to straightened out and repainted properly. .IMG_0083 (2)

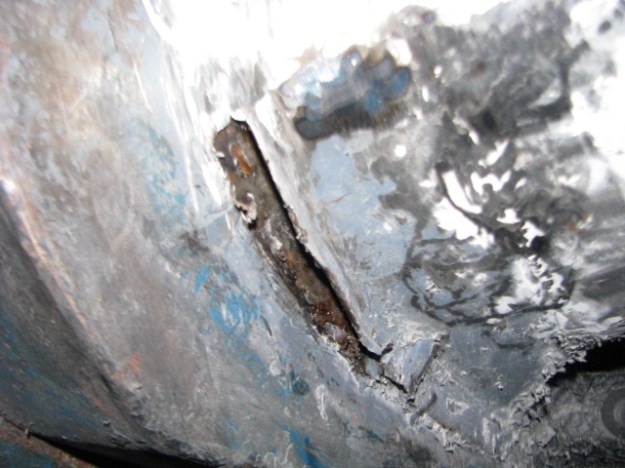

With the bitumen removed I could see what need fixing . The patch welded in recently was actually suck to chassis with sikaflex.

IMG_0082 (2)

IMG_0089 (2)

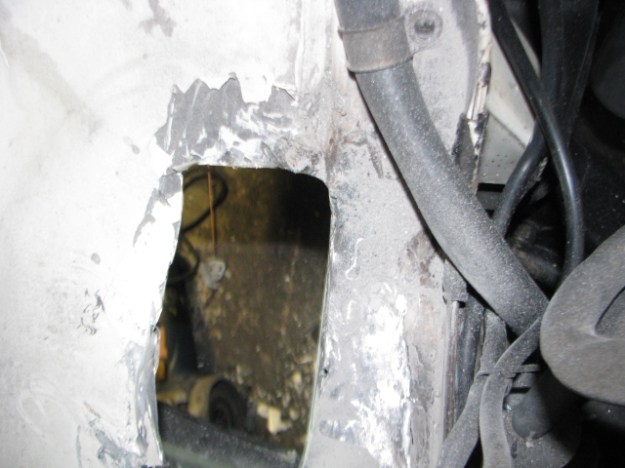

the patch was removed …

IMG_0086 (2)

a long with lots of filler.

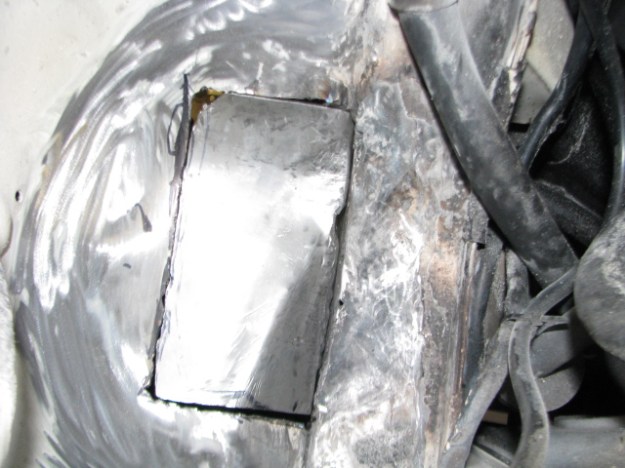

IMG_0090 (2)A new piece of the correct shape was made and welded in.

IMG_0091 (1)IMG_0092 (1)

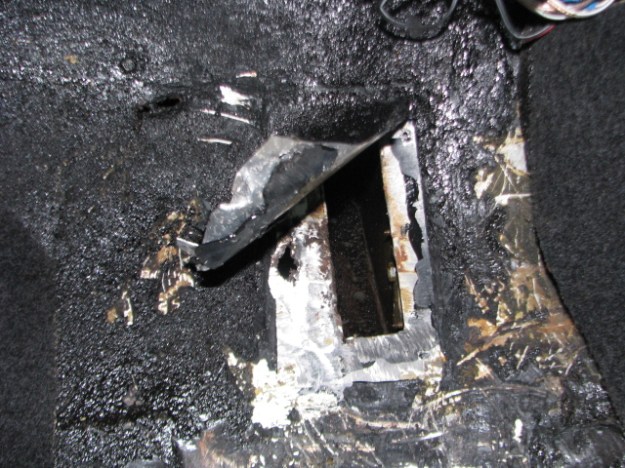

Inside the passenger side footwell some serious rust has been previously covered with patches ,IMG_0093 (1)IMG_0094

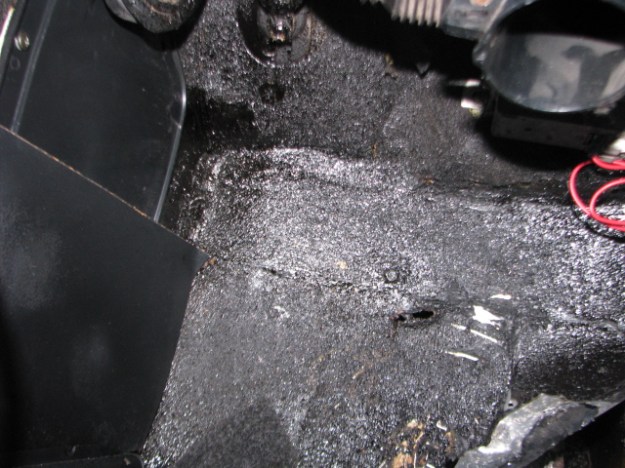

In this shot a hole right through to the left front wheel house can be seen .

IMG_0097

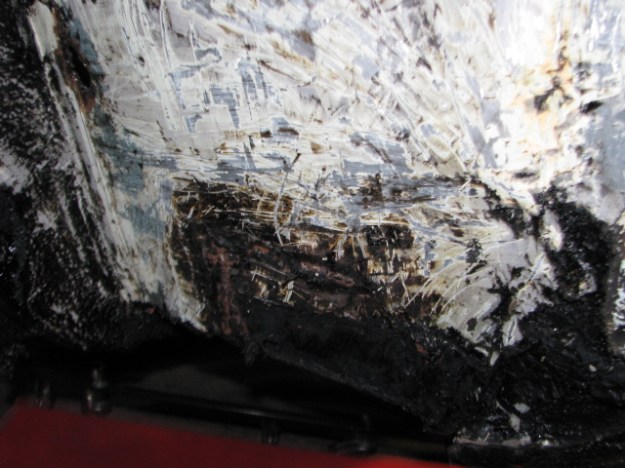

The hole the patch covers is the main front chassis leg mount…. ! this will havwe to be repaired to regain the strength in the body shell.



IMG_0099

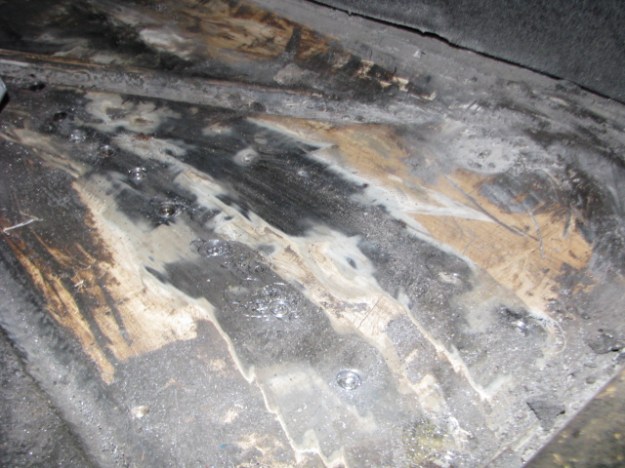

In the Wheel house with the underseal removed , another couple of patches on the floor have been revealed .

IMG_0101

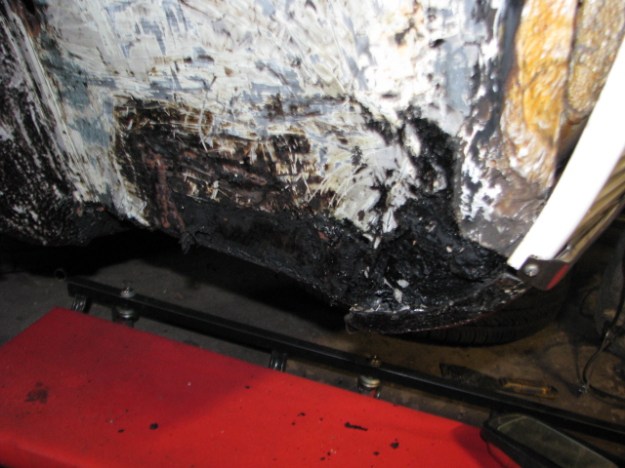

Inside the Floor will be removed ,here the spot welds on the chassis rail are being removed so the panel can be lifted out.

IMG_0107
